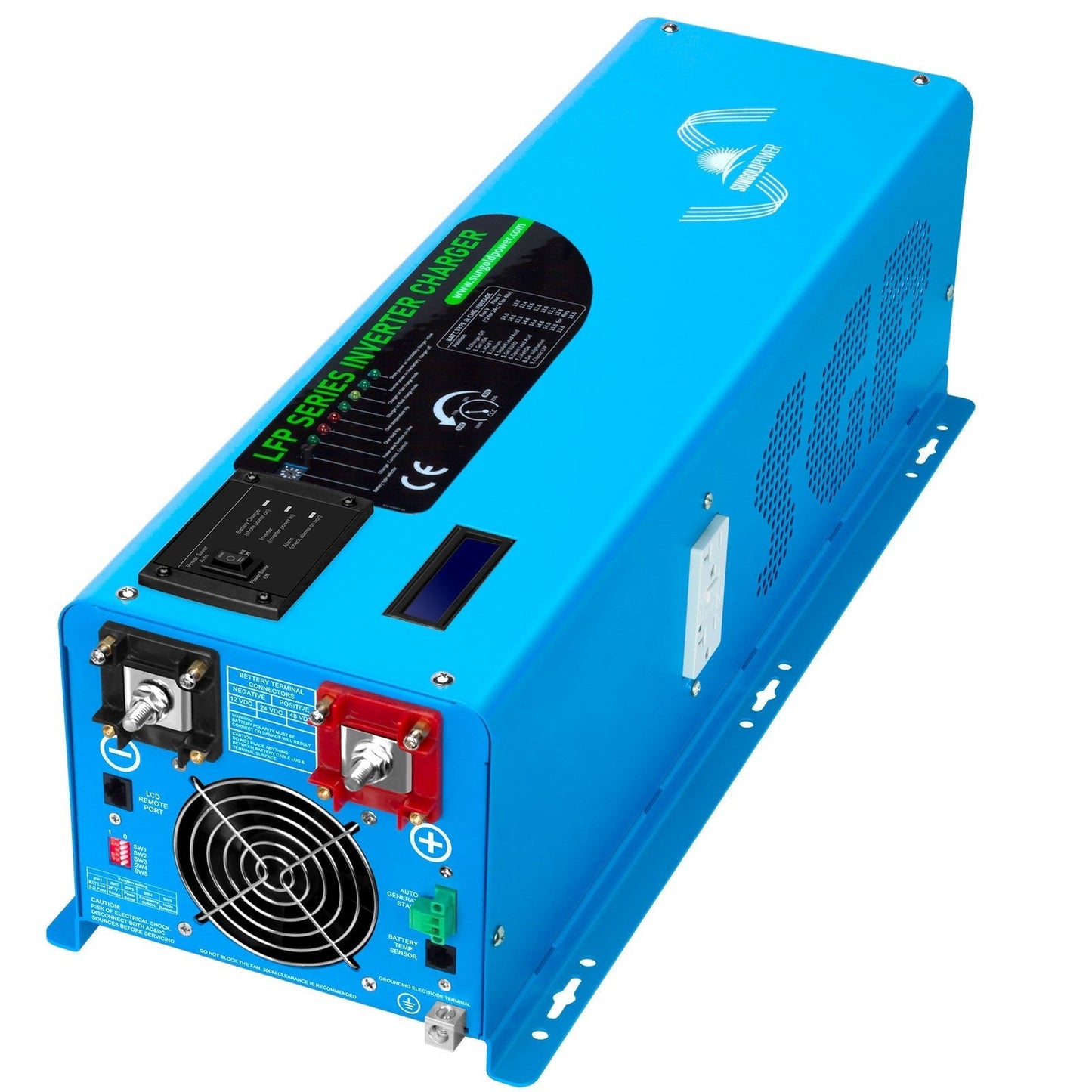

SunGoldPower 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger

Description

The SunGoldPower 6000W 24V Split Phase Pure Sine Wave Inverter Charger is a premium-grade, low-frequency power inverter engineered for reliable, high-performance energy conversion in a wide range of applications. Perfect for powering an entire small home, business, RV system, trailer, or boat, this 6000-watt inverter is an excellent solution for both off-grid solar setups and emergency backup power systems. It features a split-phase output that accepts 240VAC input and delivers selectable 110/120V or 220/230/240V output, with adjustable frequency of 50Hz or 60Hz.

Its ability to provide two legs of 110V makes it ideal for residential and commercial environments with a 220V panel. Built with high-quality components, the SunGoldPower inverter charger ensures efficient energy use, strong surge capacity, and seamless integration into your existing power infrastructure.

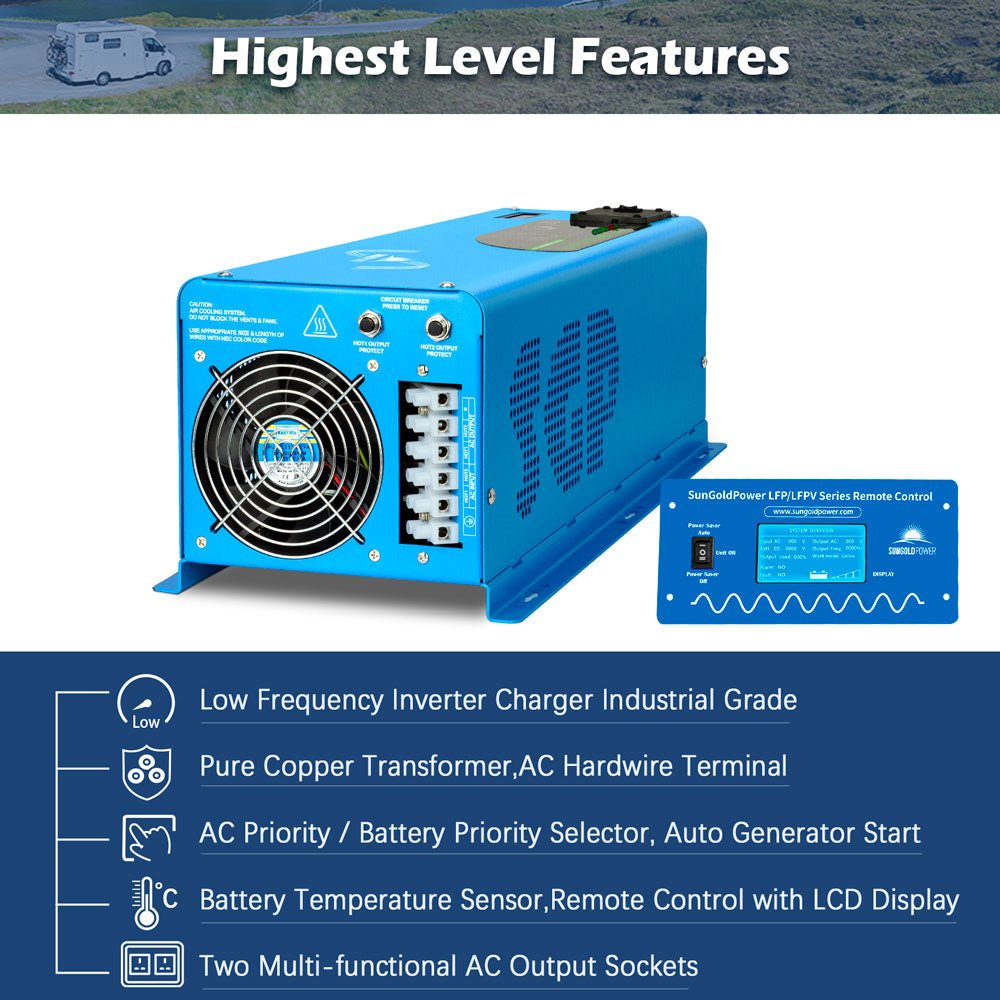

Features

• 6000W Low Frequency Pure Sine Wave Inverter – Delivers clean and stable power suitable for sensitive electronics and heavy-duty appliances.

• Built-In 90A Multi-Stage Smart Battery Charger – Supports 9 battery types including AGM, GEL, and LiFePO4; charging function can be disabled when not needed.

• Integrated Transfer Switch (10ms Transfer Time) – Automatically switches between utility/generator power and battery backup in under 10 milliseconds.

• AC/Battery Priority Mode Selector – Allows you to customize your power source preference.

• Auto Generator Start Function – Enables seamless integration with standby generators for uninterrupted power supply.

• User-Friendly LCD Display & Remote Control – Provides real-time system data and easy control from a distance.

• Low Idle Power Consumption – Reduces energy waste when in standby mode.

• Safe & Reliable Design – Engineered for durability with advanced protection features.

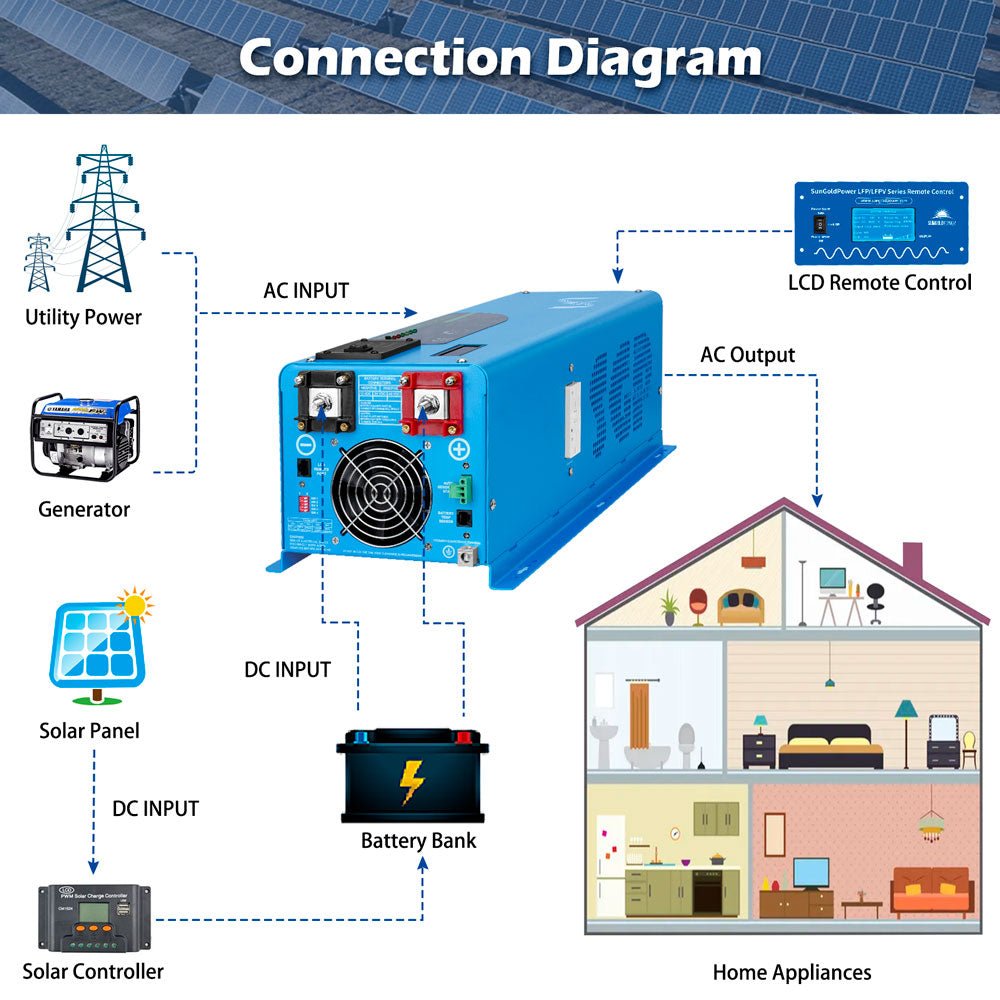

• Three-in-One Solution:

  • Inverter: Converts 24V DC battery power into 120/240V AC for home, RV, or business use.
  • Charger: Automatically charges batteries using grid or generator power.
  • Transfer Switch: Instantly switches to backup battery power when grid fails.

Additional Information

Specifications

Inverter Output:

• Continuous Output Power: 6000W

• Surge Rating: 18000W (20 Seconds)

• AC Output: AC 120V and AC 240V

• AC Input: 240V

• Output Wave: Pure Sine Wave (bypass mode)

• Typical Transfer Time: 10ms (MAX)

• Nominal Efficiency: >88%

DC Input:

• Nominal Input Voltage: 24.0Vdc

• Minimum Start Voltage: 20.0Vdc

• Low Battery Alarm: 21.0Vdc-22.0Vdc

• Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)

• High Voltage Alarm: 32.0Vdc

• Low battery Voltage Restart: 26Vdc

• Idle Consumption: 77W

• Power Saver Mode Idle Consumption: 29W

AC Charger:

• Charger Rate: 90+/-5A

• AC input Range (Grid or Generator): 140V-270VAC/184V-253VAC (select by SW2)

• Over Charge Protection Shutdown: 31.4V
• Selectable Charge Setting based on battery type

• Adjustable charge current: off 0%-100%

• 3-step intelligent battery charger

Packaging:

• 6000W 24V Low Frequency Pure Sine Inverter

• English Manual

• Remote Control

• BTS Cable

• Unit Weight: 76.7LB

• Unit Size: 25.6 x 9.1 x 7.5 inch

• Shipping Weight: 85.5LB

• Shipping Size: 30.3 x 13.4 x 12.8 inch

In the Box

Warranty

• Warranty Period: 1 Year

Documents

• LFP 6KW 24V Pure Sine Wave Inverter/Charger Data Sheet
• LFP Series Pure Sine Wave Inverter/Charger User's Manual

FAQs

Q. What does 240VAC split-phase mean? Can I use 120V or 240V?
Yes. Split-phase means the inverter outputs both 120V (one leg, 3000W) and 240V (combined legs, 6000W), making it compatible with both voltage needs.

Q. Can it charge lithium (LiFePO4) batteries like Battle Born?
Yes, it supports lithium batteries. Refer to the manual for battery type selection.

Q. How much continuous power can it provide?
While rated for 6000W, it's best to run continuous loads at or below 4800W for efficiency and longevity.

Q. What does “AC Abnormal” mean on the display?
This message appears when:

• • No AC input is connected (normal in inverter mode),
  • AC input voltage is out of range,
  • In battery priority mode, AC input is detected but not used.

These scenarios are normal based on the inverter’s settings.

Q. Is this inverter good for off-grid systems?
Yes. It's ideal for off-grid setups, powering homes, RVs, or businesses—just ensure your battery bank is properly sized for your energy needs.
