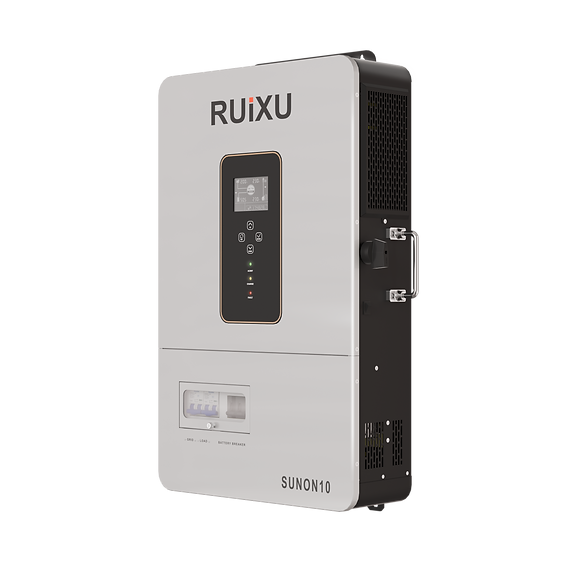

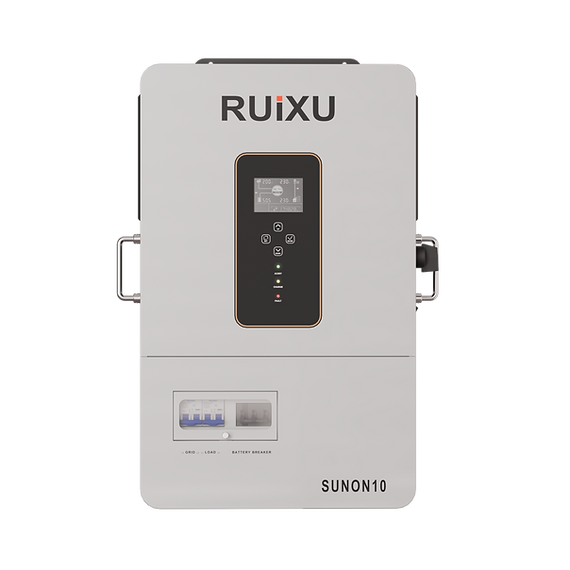

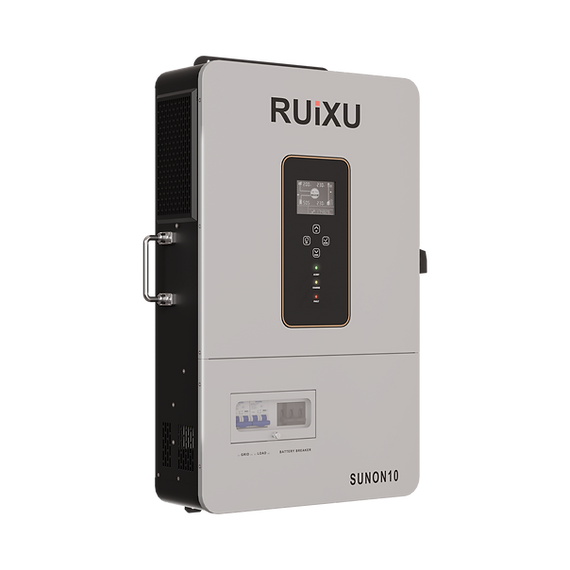

RUiXU Single/Split-Phase Off-Grid Inverter | 10kW | UL1741 (SUNON10)

1. Features (About This Item)

• Flexible Single/Split-Phase Operation: Designed for both 120V/240V split-phase and single-phase output, ideal for off-grid homes and commercial use.

• Compatible with 48V Batteries: Supports a wide range of lithium and lead-acid 48V storage batteries, ensuring flexible integration into existing systems.

• High-Efficiency 200A Solar Charging Controller: Built-in MPPT controller with up to 200A charge current ensures fast and stable solar charging.

• SUB Mode Hybrid Charging: Supports grid and PV hybrid charging with automatic switchover, guaranteeing consistent power availability.

• Time-Based Charge/Discharge Scheduling: Customizable time settings help optimize energy use based on rate fluctuations, reducing power costs.

• Scalable System Design: Parallel up to 6 inverters for a combined output of up to 60kW, perfect for expanding power needs.

• Integrated 200A Circuit Breaker: Enhances protection with built-in short circuit and overload safeguards.

• 3-Year Warranty Coverage: Includes a standard 3-year warranty for reliable support and long-term performance assurance.

2. Specifications (Technical Details)

Inverter (SUNON10):

• Model: SUNON10

• Rated Power Output: 10,000W

• Battery Voltage: 48V

• AC Output Voltage: 120V / 240V (Split-Phase)

• Charging Controller: Built-in MPPT, Max Charge Current: 200A

• Grid Support Mode: SUB (Hybrid Charging)

• Parallel Capability: Yes, up to 6 units (Total 60kW)

• Circuit Protection: Built-in 200A Circuit Breaker

• Output Type: Pure Sine Wave

• Monitoring: Wi-Fi Dongle Included

• Warranty: 3 Years

3. What’s Included in the Box

• 1 × SUNON10 10kW Inverter

• 1 × 200CM CAT6 Communication Cable

• 1 × Operation Manual

• 1 × WiFi Dongle

4. Product Description (Product Details)

The RUiXU SUNON10 is a high-performance 10kW off-grid inverter, engineered for residential and commercial solar storage systems. Its compatibility with 48V batteries, robust 200A solar charging controller, and support for hybrid charging make it a reliable energy backbone. With the ability to parallel up to 6 units for a total capacity of 60kW, the SUNON10 is scalable and built for demanding energy environments. Built-in protection and flexible output configurations (120V/240V) make it suitable for a wide range of applications, from remote cabins to independent business operations.

5. Product Images & Videos (From the Brand)

6. Manufacturer Warranty Information

• Inverter: 3 Years

Need Assistance? Contact Our Support Team:
📞 Phone: (800) 830-0173
📧 Email: support@igeobotics.com
🕐 Mon–Fri, 9:00 AM–6:00 PM (CST)

7. Additional Information

• Safety Features: Overload protection, short-circuit protection, reverse polarity

• Unique Selling Points:

  • 120V/240V split-phase support

  • Scalable to 60kW

  • Time-based energy optimization

  • Free Technical Support via Facebook Group

⚠️ Warning: Cancer and reproductive harm – www.P65Warnings.ca.gov (Only For Solar Products)

8. Use Documents

👉 Spec Sheet

👉 User Manual

9. Frequently Asked Questions

Q: What battery types are compatible with the SUNON10 inverter?
A: It supports 48V lithium and lead-acid batteries.

Q: Can this inverter operate in parallel with others?
A: Yes, it supports up to 6 units in parallel for a total of 60kW output.

Q: Is this inverter suitable for both 120V and 240V loads?
A: Yes, it supports split-phase output for both voltage types.

Q: Does the inverter support grid charging?
A: Yes, through SUB mode it can charge via solar and the grid.

Q: What is included in the box?
A: The inverter, CAT6 cable, WiFi dongle, and user manual are included.
