RUiXU RX-LFP48100-H Self-Heating 48V Server Rack Battery | UL1973 Certified

Description

The RUiXU RX-LFP48100-H is a high-performance 48V LiFePO₄ battery designed for scalable energy storage solutions. UL1973 certified and optimized for rack-mounted applications, this 3U module offers reliable, safe, and efficient power for commercial, industrial, and residential setups. Its modular design allows easy system expansion, making it ideal for growing energy demands. The battery is engineered for durability, long life, and seamless integration with a variety of inverter brands.

Key Features

• Nominal Voltage: 51.2V

• Nominal Capacity: 100Ah

• Nominal Energy: 5120Wh

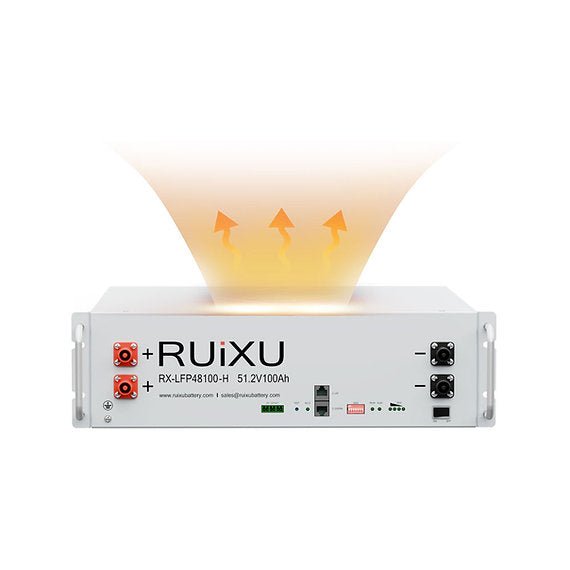

• Self-Heating: Designed for cold weather use; can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.

• UL1973 & UL9540A Certified: Ensures compliance with strict safety and quality standards.

• Modular Design: Supports up to 32 units in parallel, scaling systems from 5kWh to 160kWh without external controllers.

• High Compatibility: Supports multiple inverter protocols via RS485 and CANbus for Victron, SMA, Studer Innotec, Sofar, Solis, Goodwe, Deye, Growatt, Sunsynk, Schneider, and more.

• Durable Build: Compact 3U (482.6 x 460 x 133 mm) size saves space while providing robust performance.

• Efficient Heat Management: Built-in design ensures stable operation in charge and discharge ranges.

Additional Information

• Monitoring & Control: RS485 communication allows monitoring and firmware updates using compatible inverter software.

• Modular Expansion: Up to 32 units in parallel without additional controllers.

• Pre-Charge Safety: Ensures safe integration with high-power inverters.

• Flexible Deployment: Compatible with multiple inverter protocols for various renewable energy systems.

Specifications

Battery (RX-LFP48100-H):

• Model: RX-LFP48100-H

• Nominal Voltage: 51.2V

• Nominal Capacity: 100Ah

• Nominal Energy: 5.12kWh

• Minimum Capacity: 100Ah

• Self-Heating Charge Temp: Down to -20°C (-4°F)

• Operating Temperature:

  • Charge: -5°C to 59°C

  • Discharge: -10°C to 59°C

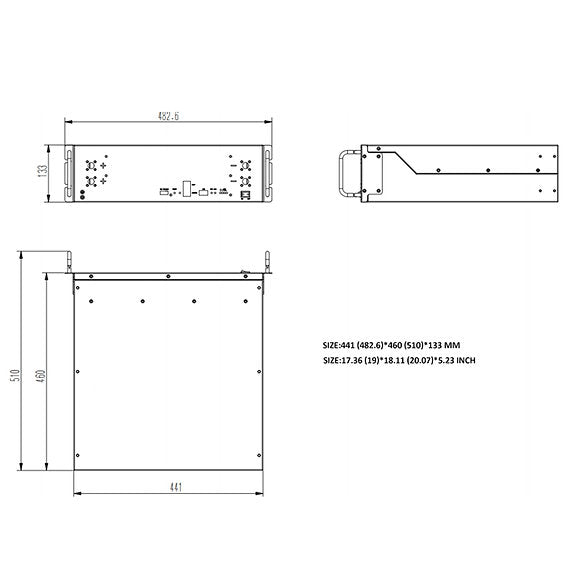

• Dimensions (W × D × H): 482.6 × 460 × 133 mm (19 × 18.1 × 5.23 in)

• Weight: ~47kg (103.6 lbs)

• Parallel Capability: Up to 32 units (160kWh)

• Installation Options: Rack, wall, stack, floor-mounted

• Pre-Charge Capability: 1,000,000μF

• Communication:

  • CANbus: Victron, SMA, Sol-Ark, Deye, Growatt, GoodWe, and more

  • RS485: MPP Solar, Voltronic, Alpha, RCT

• Certifications: UL1973, IEC62619, UN38.3, MSDS

• Warranty: (Please confirm years, default assumed: 10 Years)

In the Box

• 1 x RUiXU 48V Server Rack Battery (RX-LFP48100-H)

• 1 x RJ45/CAT5e Patch Cable

• 1 x Ground Cable

• 1 x Set of Parallel 4AWG Cables per battery

Warranty

• Coverage: 1-year limited warranty

• Includes: Defects in materials or workmanship under normal use

• Excludes: Damage caused by misuse, unauthorized modifications, or improper installation

• Support: RUiXU technical support available via email with proof of purchase

FAQ

Q1: Can I expand my system using multiple RX-LFP48100-H batteries?

• Yes

• Modular design supports up to 32 units in parallel

• Allows larger capacity systems without extra controllers

Q2: Which inverters are compatible with this battery?

• Supports multiple protocols via RS485 and CANbus

• Compatible with Victron, SMA, Sofar, Goodwe, Deye, Growatt, Sunsynk, Schneider, and other major brands

Q3: Does the battery require a special cabinet for installation?

• No

• Can be installed in standard 19" server racks, floors, walls, or stack-mounted as required

Q4: Is monitoring and firmware updating supported?

• Yes

• RS485 communication allows monitoring and firmware updates through compatible inverter software
