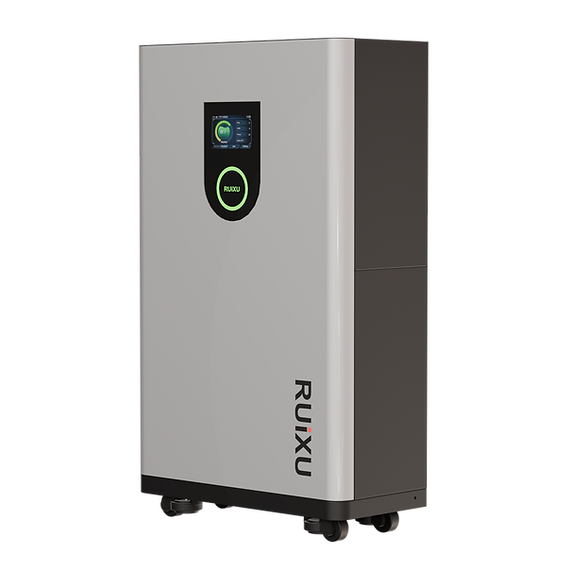

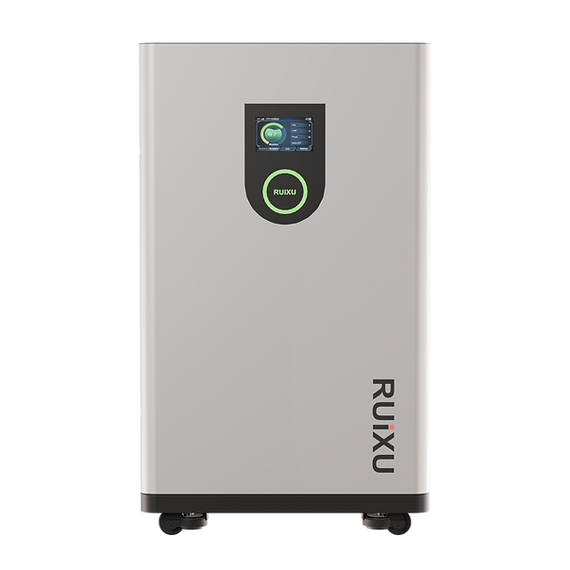

RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO₄ Battery Bank

Description

The RUiXU Lithi2-16 is a high-performance 48V LiFePO₄ battery designed for scalable energy storage solutions. UL1973 certified and optimized for both residential and commercial applications, this 3U module offers reliable, safe, and efficient power. Its modular design allows easy system expansion, making it ideal for growing energy demands. The battery is engineered for durability, long life, and seamless integration with a variety of inverter brands.

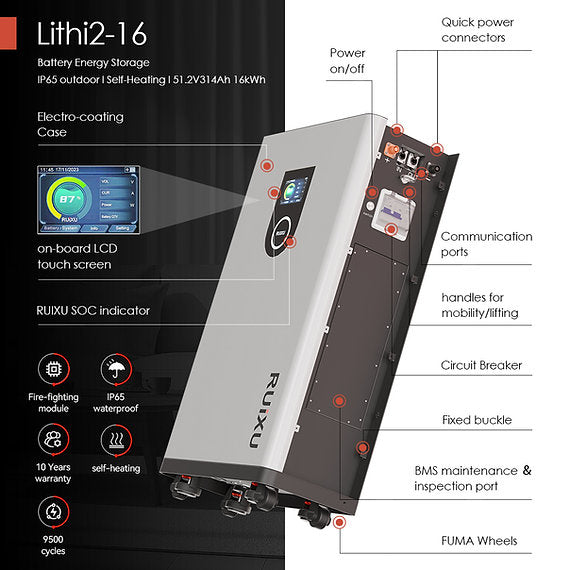

Key Features

• Nominal Voltage: 51.2V

• Nominal Capacity: 314Ah

• Nominal Energy: 16.07kWh

• Cycle Life: ≥9500 cycles at 80% DOD

• Certifications: UL1973, UL9540A, CEC, SGIP

• Expandable: Supports up to 32 units in parallel, scaling systems from 16kWh to 257kWh

• Inverter Compatibility: Supports CANbus and RS485 protocols for various inverter brands

• Onboard LCD Touchscreen: 5-inch capacitive touchscreen for battery information and settings adjustment

• Safety Features: Gas Aerosol Fireroof module for enhanced fire protection

• Quick Plugs: 250A continuous overcurrent capacity with tool-less connection

• Mobility & Mounting: Equipped with FUMA wheels for easy movement and wall-mounted fixation

Specifications

Battery (Lithi2-16):

• Model: Lithi2-16

• Nominal Voltage: 51.2V

• Nominal Capacity: 314Ah

• Nominal Energy: 16.07kWh

• Minimum Capacity: 314Ah

• Cycle Life (@80% DoD): ≥9500 cycles

• Self-Heating: Yes

• Communication Protocols:

  • CANbus: Victron, SMA, Studer, Sol-Ark, GoodWe, Deye, Growatt, LuxPower, Sermatec, TBB, Schneider, and more

  • RS485: MPP Solar, Voltronic, RCT, Alpha Outback

• Expandable: Up to 32 units (257kWh total)

• Touchscreen: 5-inch capacitive LCD

• Quick Plug: 250A continuous overcurrent capacity

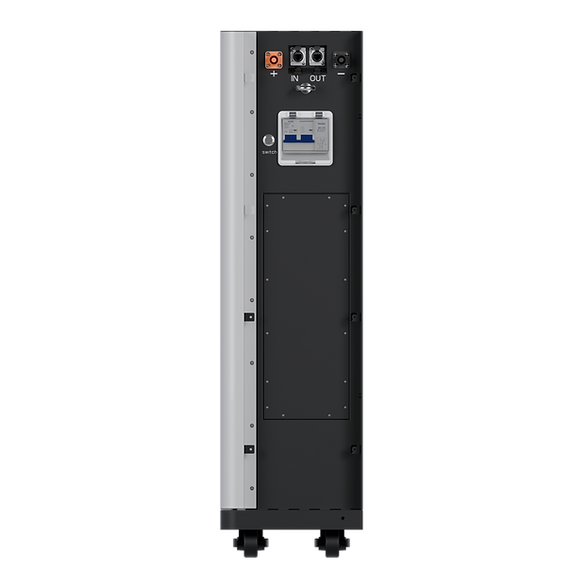

• Protection: All-pole protection (fuse + circuit breaker)

• Fire Safety: Perfluorohexane fire module

• Enclosure Coating: Electro-coating for rust prevention

• Mounting Options: Floor-standing with wheels + wall-anchored

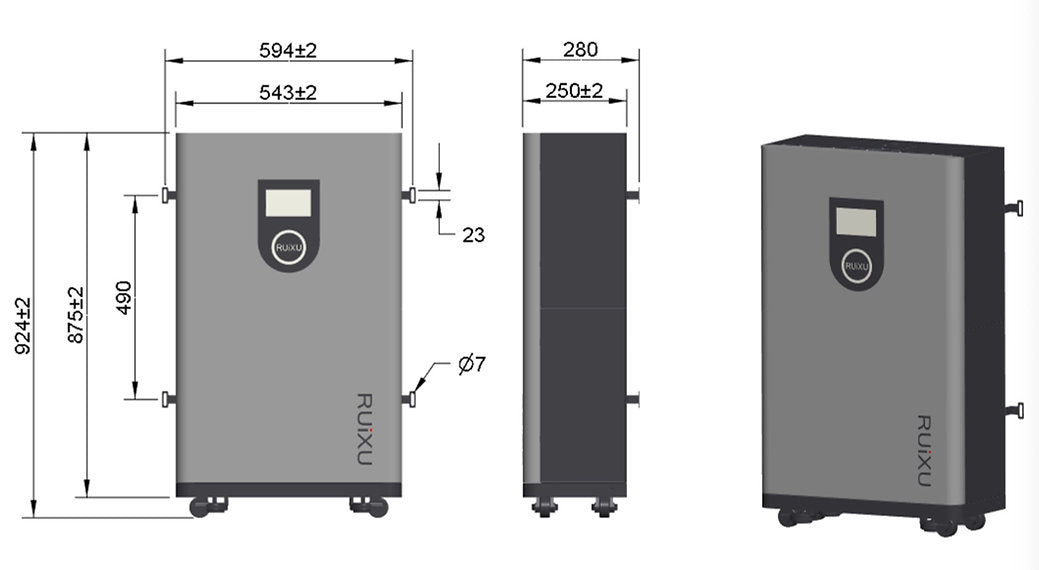

• Dimensions (H×W×D): 924 × 543 × 250 mm (with wheels)

• Dimensions (inches): 36.3 × 21.3 × 10 (with wheels)

• Weight: ~145kg (320 lbs)

• Certifications: UL1973, UL9540A, CEC-listed, SGIP-approved

• Warranty: Contact Our Support Team

In the Box

• 1 x RUiXU Lithi2-16 Battery Bank

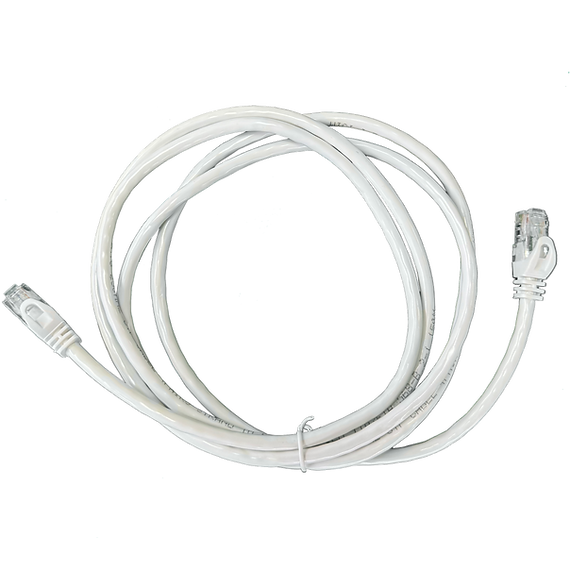

• 1 x RJ45/CAT5e Patch Cable

• 1 x Ground Cable

• 1 x Set of Parallel 1/0 AWG OP140 or PP140 Cables

Warranty

• Coverage: 1-year limited warranty

• Includes: Defects in materials or workmanship under normal use

• Excludes: Damage caused by misuse, unauthorized modifications, or improper installation

• Support: RUiXU technical support available via email with proof of purchase

FAQ

Q1: Can I expand my system using multiple Lithi2-16 batteries?

• Yes

• Modular design supports up to 32 units in parallel

• Allows larger capacity systems without extra controllers

Q2: Which inverters are compatible with this battery?

• Supports multiple protocols via CANbus and RS485

• Compatible with Victron, SMA, Sofar, Goodwe, Deye, Growatt, Sunsynk, Schneider, and other major brands

Q3: Does the battery require a special cabinet for installation?

• No

• Can be installed in standard 19" server racks, floors, walls, or stack-mounted as required

Q4: Is monitoring and firmware updating supported?

• Yes

• RS485 communication allows monitoring and firmware updates through compatible inverter software
