Chasing Distance Lock Sonar (CDLS)

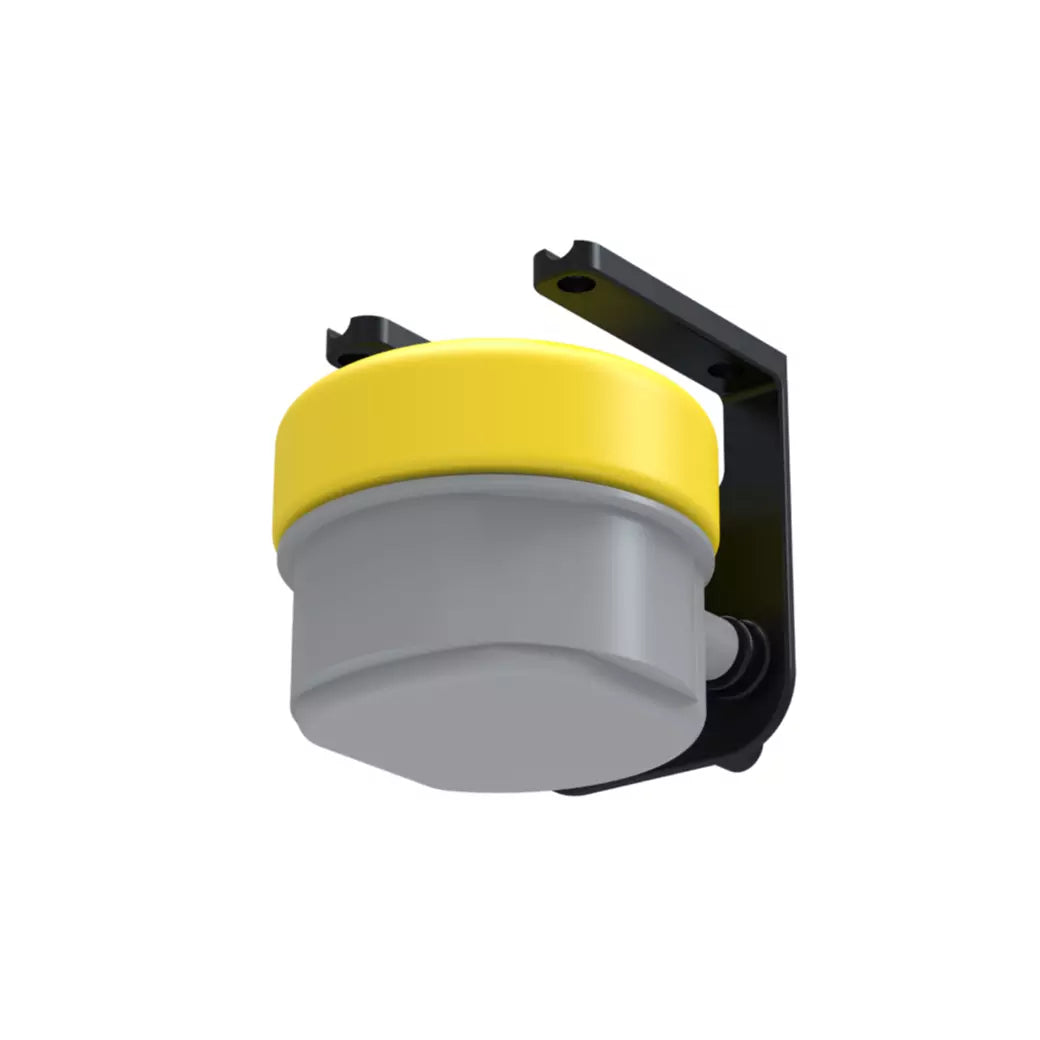

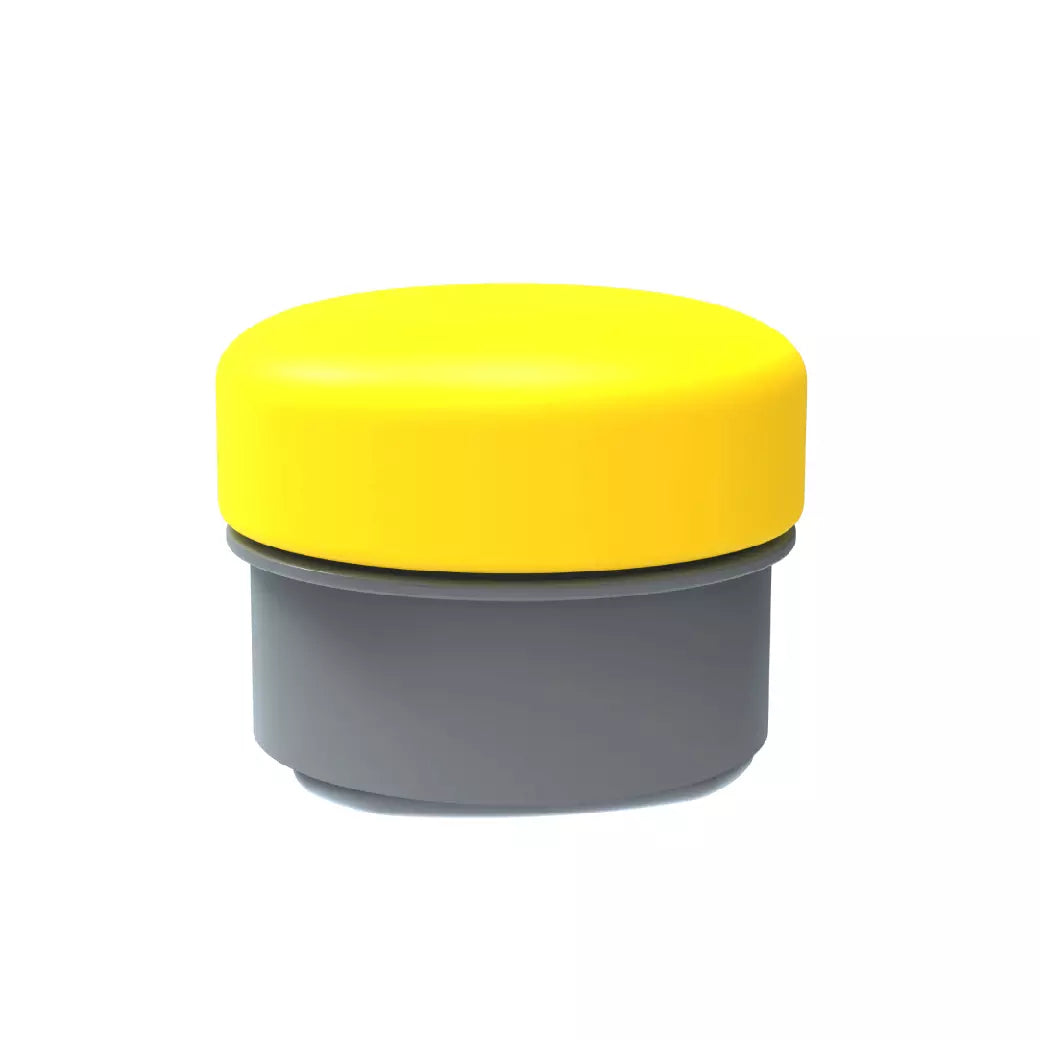

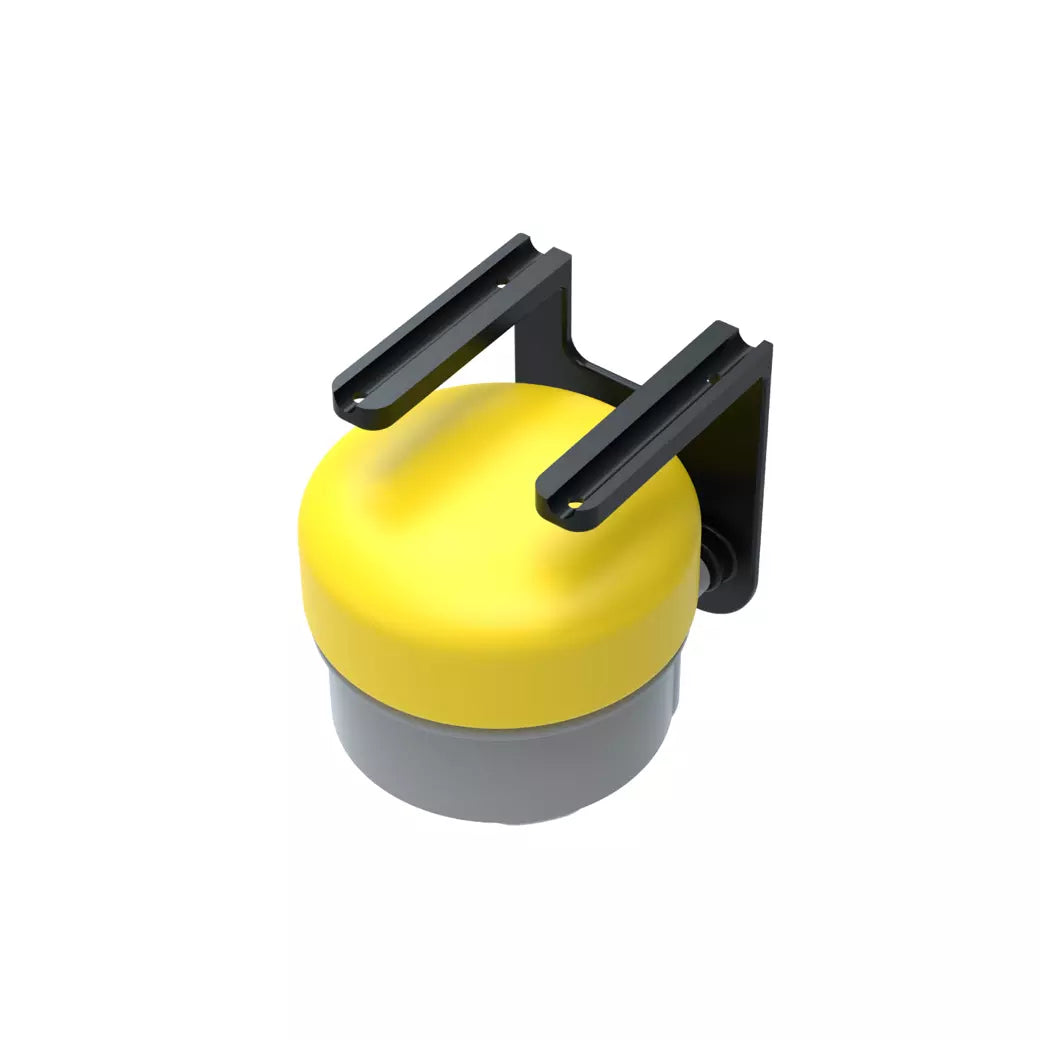

CHASING Distance Lock Sonar

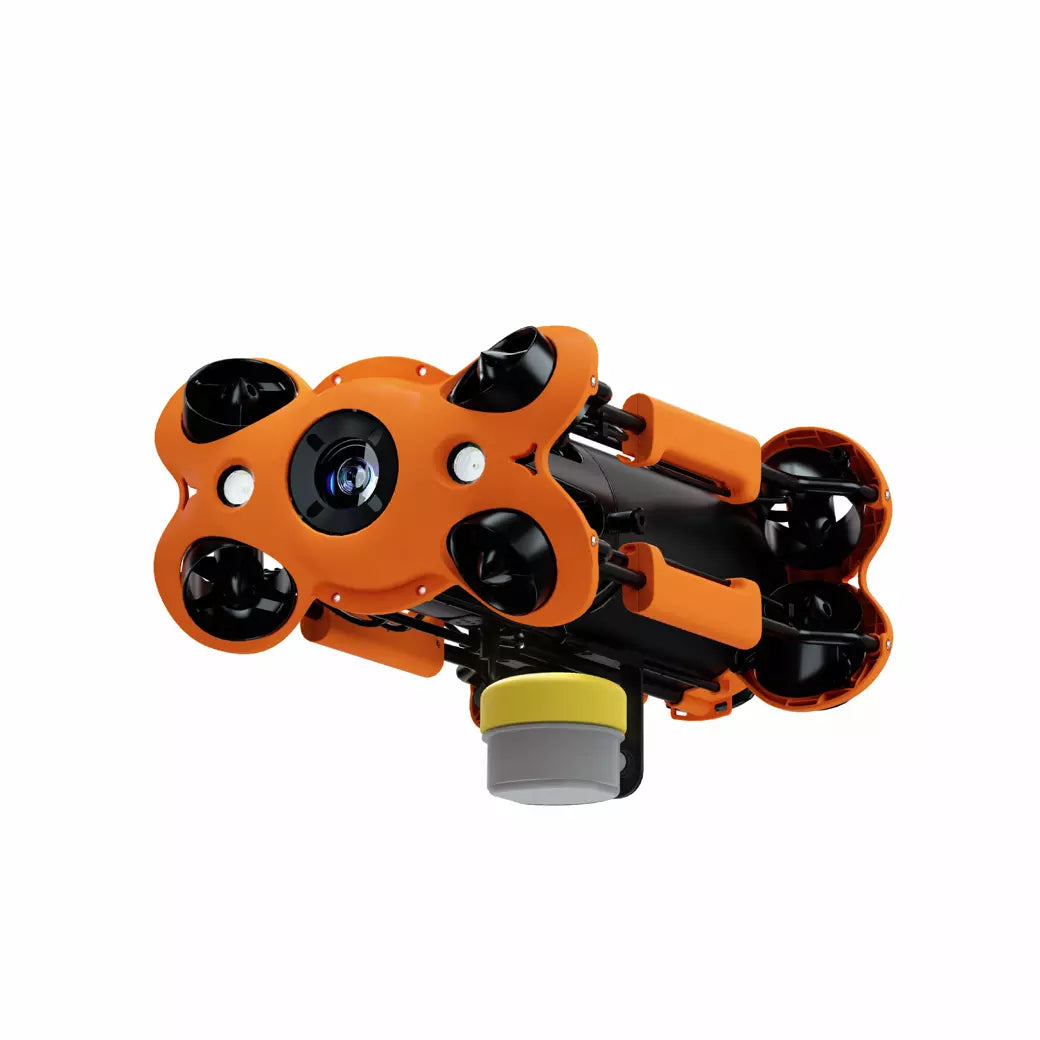

The CHASING Distance Lock Sonar is specifically designed for CHASING ROVs, providing enhanced precision and efficiency during underwater inspections. It enables the ROV to maintain a fixed distance from obstacles, ensuring automatic collision avoidance and more accurate inspections.
Automatic Distance Lock in Four Directions
This sonar system automatically measures the distance between the ROV and obstacles in four key directions: front, left, right, and bottom. After configuring the desired distance via the app, the ROV will perform self-adjusting lock-distance inspections and autonomously avoid collisions.
Streamlined Automatic Inspections
In lock-distance mode, the ROV can seamlessly conduct inspections around structures like fishing nets or column-shaped facilities, moving from top to bottom. This feature simplifies underwater tasks, enhances operational efficiency, and improves inspection accuracy.
What’s in the Box
Specs
| Feature | Specification |
|---|---|
| Application | Underwater collision avoidance, Underwater fixed range |
| Range | Less than 20 cm |
| Blind Spot | Less than 20 cm |
| Measurement Accuracy | ±25 mm |
| Resolution | 1 mm |
| Launch Angle | 13° ± 2°, 26° between axis-1 and axis-2 |
| Power Supply | 10.8 VDC - 26.4 VDC (measurement range will vary depending on voltage) |
| Storage Temperature | -20 ℃ - 60 ℃ (non-frozen environment) |
| Probe Installation | Fixed installation |
| Protection Level | IP68 |
| Sonar Installation Base (default) | 64 × 64.8 × 79 mm |
| Sonar Installation Base (optional) | 64 × 64.8 × 153 mm |
| Sonar Installation Base Weight (default) | 54 g |
| Sonar Installation Base Weight (optional) | 108 g |
| Maximum Diving Depth | 150 m |
| Size of Distance Lock Sonar | Upper cover: 81.3 × 30 mm, Housing: 79.3 × 55.9 mm |
| Weight of Distance Lock Sonar | 286 ± 5 g |
Warranty Policy
The Warranty starts from the date of sale to the End User. If the receipt document cannot be provided, the warranty period will be calculated according to the serial number of the ROV.
Note: Damages caused by human and external factors are not covered by the warranty. The results of the after-sales center test shall prevail.
| Main Component | Warranty Period |
|---|---|
| Distance Lock Sonar | 12 Months |
| Shell | No warranty |
| Mounting Bracket | No warranty |
| Connecting Cable | No warranty |
Compatatibilty
- Chasing M2
- Chasing M2 S
- Chasing M2 Pro
