Automaxx 600W Home Wind Turbine Generator Kit
Description
The Automaxx 600W Home Wind Turbine Generator Kit is designed for off-grid applications, providing a reliable renewable energy source for homes, cabins, or RVs. This kit harnesses wind energy to charge 12V or 24V battery systems, offering an eco-friendly alternative to traditional power sources.
Key Features
-

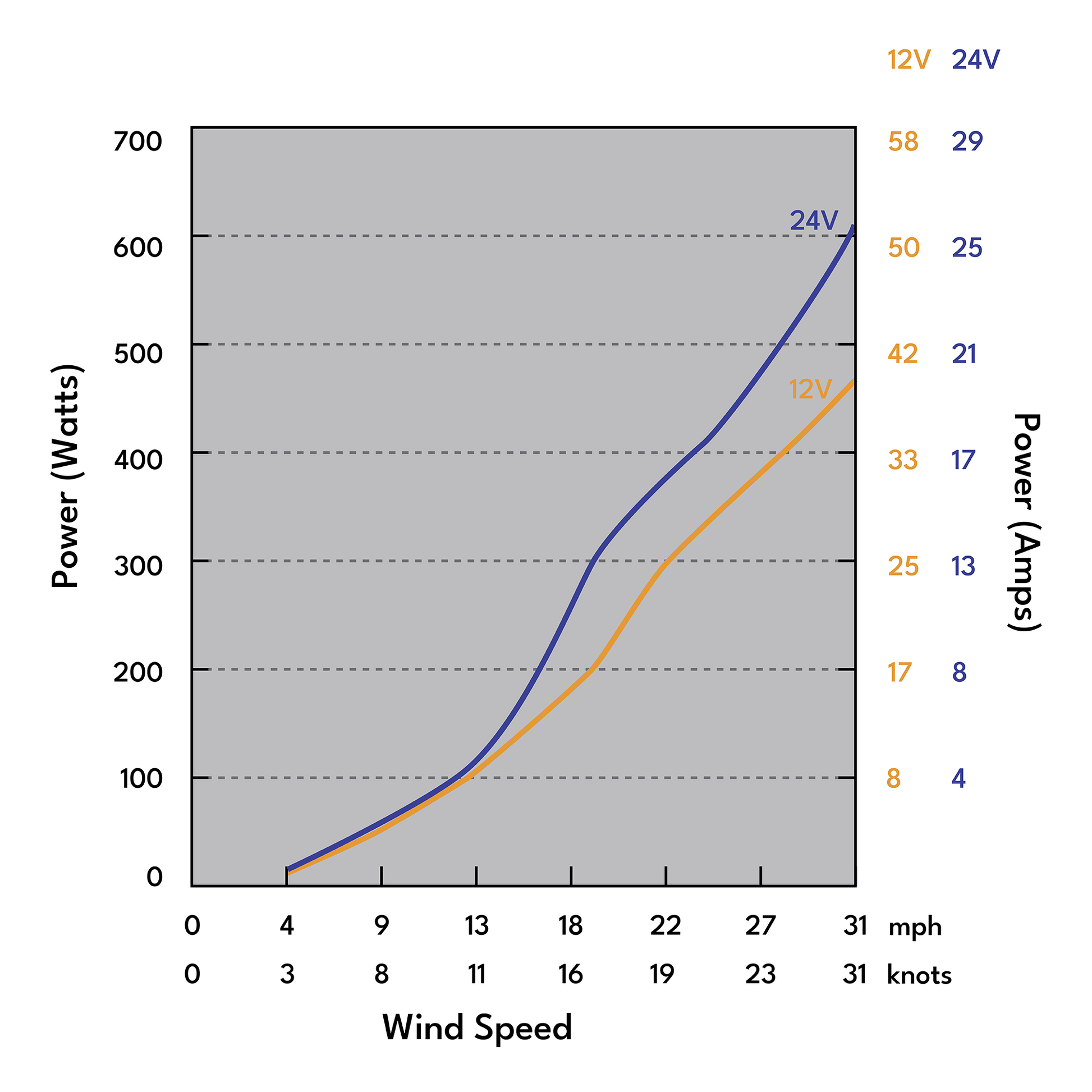

Power Output: Generates up to 600W of power, suitable for small to medium energy needs.
-
Low Wind Start: Begins generating power at wind speeds as low as 4.5 mph, ensuring energy production in mild wind conditions.
-
Noise Level: Operates at a low noise level of 40dB, minimizing disturbance.
-
MPPT Charge Controller: Includes an external MPPT charge controller for efficient energy conversion and battery charging.
-
Bluetooth Monitoring (Optional): Allows real-time system monitoring via a mobile app (available in the Bluetooth version).
-
Battery Compatibility: Supports 12V and 24V battery systems, offering flexibility in energy storage options.
Specifications
| Specification | Details |
|---|---|
| SKU | DB0600ABDBB |
| Max. Output Power | 600 W (12 V/24 V) |
| Rated Wind Speed | 28 mph (12.5 m/s) |
| Cut‑In Wind Speed | 4.47 mph / 2 m/s |
| Rated Load Current | 30 A (max 35 A) |
| Output Voltage | 12 V or 24 V DC |
| Recommended Battery Capacity | 12 V: 100–200 Ah; 24 V: 50–100 Ah |
| Spinning Diameter | 4.4 ft (1.35 m) |
| Blade Material | Nylon + Glass Fiber |
| Generator Type | Permanent Magnet Brushless |
| Battery Protection Voltage | 14.7 V |
| Charging Efficiency | ≥ 90 % |
| Over‑Speed Braking | ≥ 1250 RPM |
| Hub Diameter | 1.9″ |
| Noise Level | ~40 dB |
| Weight | 26.5 lb |

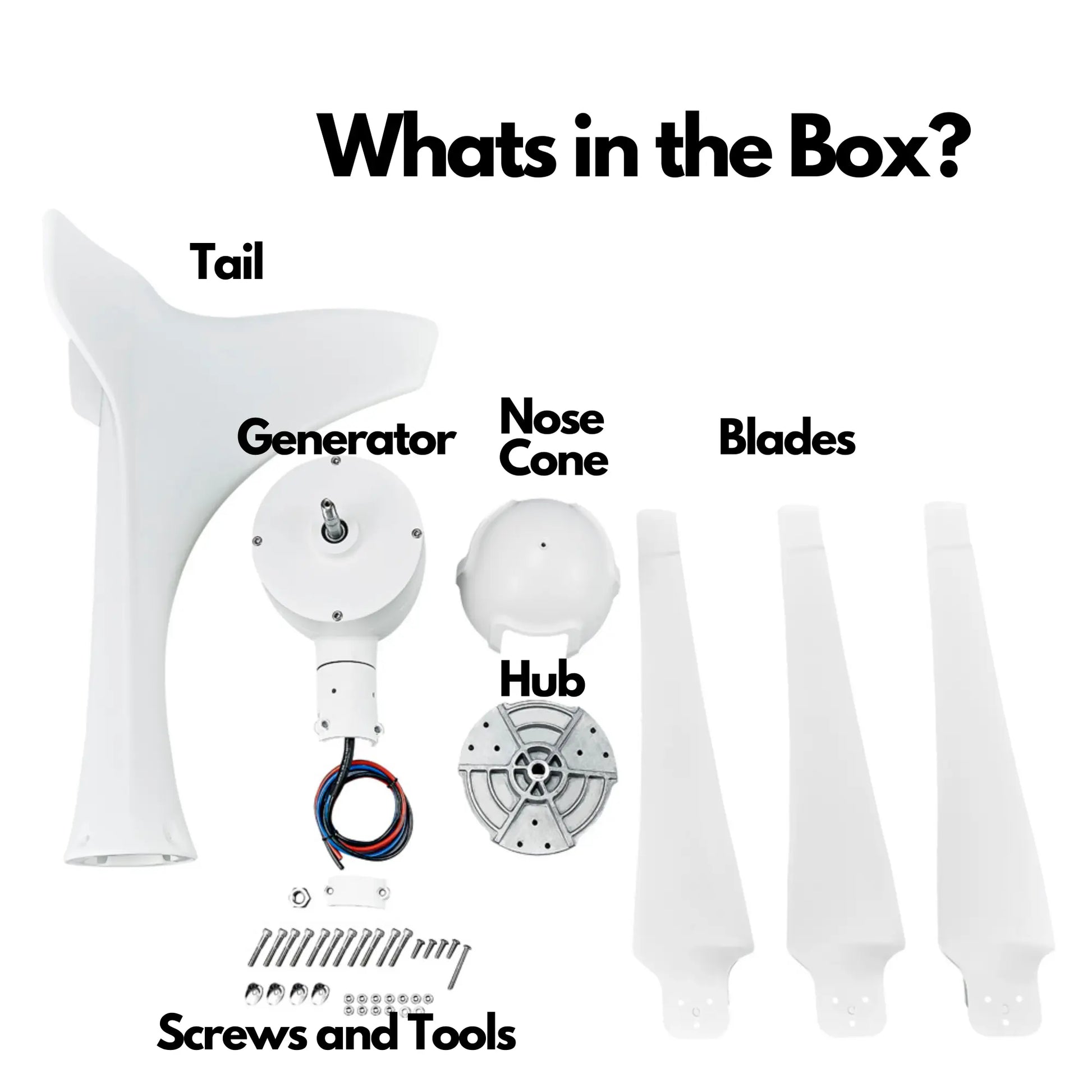

In the Box
-
1 x 600W Wind Turbine Generator
-
1 x MPPT Charge Controller
-
1 x Mounting Hardware Kit
-
1 x User Manual
Warranty
Automaxx offers a 2-year limited warranty on the 600W Wind Turbine Generator Kit, covering defects in materials and workmanship under normal use. The warranty is valid for the original purchaser and is non-transferable. Proof of purchase is required for warranty claims.
FAQ
Q1: What is the cut-in wind speed for this turbine?
A1: The turbine begins generating power at wind speeds as low as 4.5 mph, making it suitable for areas with mild wind conditions.
Q2: Can I monitor the system's performance remotely?
A2: Yes, the Bluetooth version of the system allows for real-time monitoring via a mobile app, providing insights into system performance and battery status.
Q3: Is this system suitable for marine environments?
A3: While the system is designed for off-grid applications, it's important to ensure that all components are properly sealed and protected from corrosive marine conditions.
Q4: How do I maintain the system?
A4: Regular maintenance includes checking for debris, ensuring the blades are free from obstruction, and inspecting electrical connections for wear or corrosion.
Q5: Can I integrate this system with solar panels?
A5: Yes, the system can be integrated into a hybrid setup with solar panels, providing a more consistent and reliable power source.
Q6: What is the recommended battery capacity for this system?
A6: For 12V systems, a battery capacity of 100Ah to 200Ah is recommended; for 24V systems, 50Ah to 100Ah is suitable.
Q7: How difficult is the installation process?
A7: The kit is designed for DIY installation, with comprehensive instructions provided. However, if you're not comfortable with electrical systems, it's advisable to consult a professional.
Q8: What should I do if the system isn't working properly?
A8: First, check the user manual for troubleshooting tips. If the issue persists, contact Automaxx customer support for assistance.
