1. Features (About This Item)
-
1500 W Rated Power, compatible with 24 V or 48 V battery systems
-
Low cut-in wind speed (5.6 mph / 2.5 m/s) for early energy generation
-

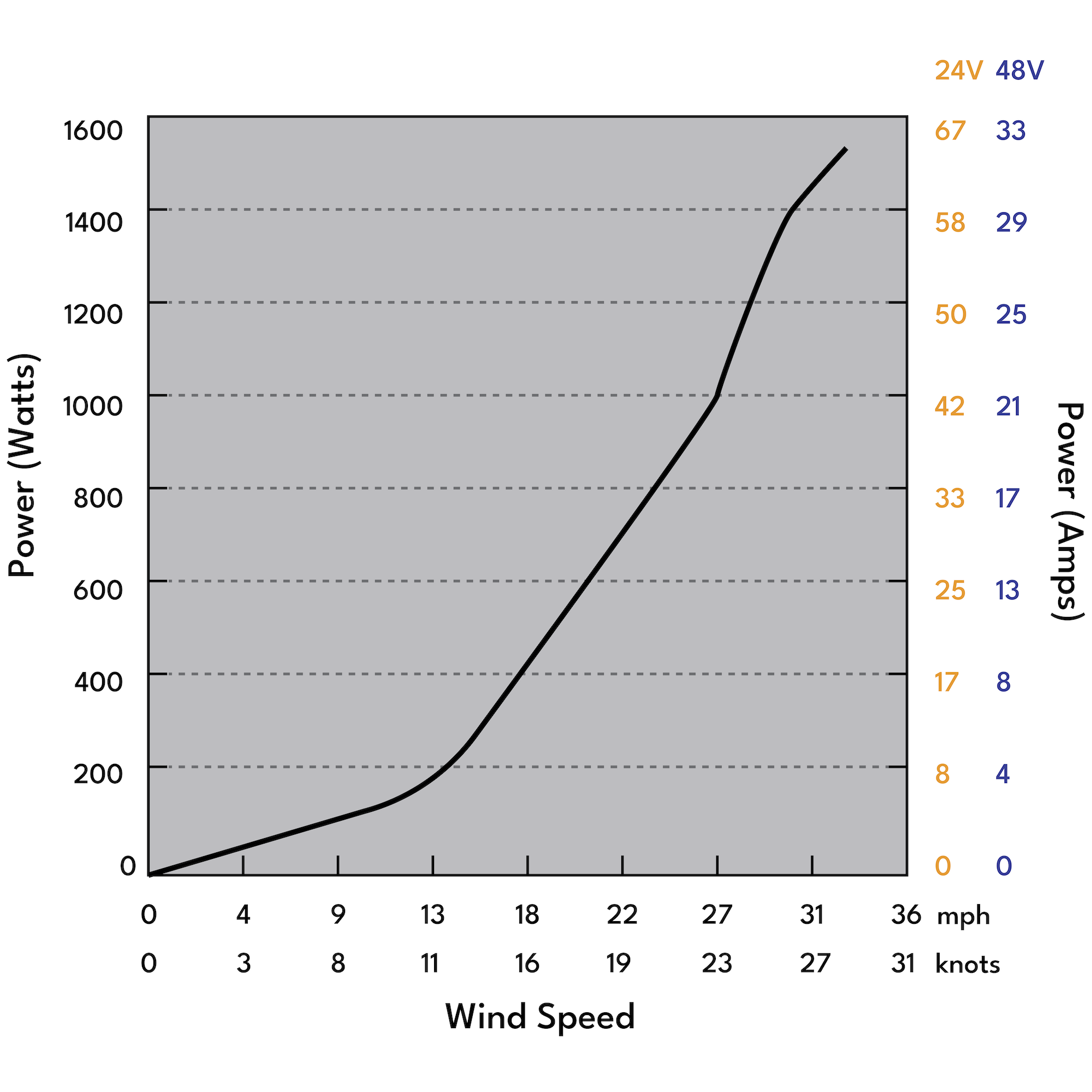

Generates up to 1500 W at 24 V/48 V from winds up to 31.3 mph
-
High-speed resilience—wind-tested up to 118 mph
-
95 % MPPT charging efficiency, maximizing energy transfer to batteries
-
Bluetooth App Monitoring (Bluetooth version) for real-time performance tracking
-
Permanent-machinet Brushless Generator with durable fiberglass + polypropylene blades
-
Automatic over-speed braking (≥ 1400 RPM) plus manual brake switch for safety
2. Specifications (Technical Details)
| Specification |
Details |
| SKU |
DA1500A9DE |
| Max. Output Power |
1500 W |
| Output Voltage |
24 V / 48 V DC |
| Rated Wind Speed |
31.3 mph / 14 m/s |
| Cut-In Wind Speed |
5.6 mph / 2.5 m/s |
| Rated Load Current |
40 A (Max. 45 A) |
| Recommended Battery Capacity |
24 V: 150–300 Ah; 48 V: 100–200 Ah |

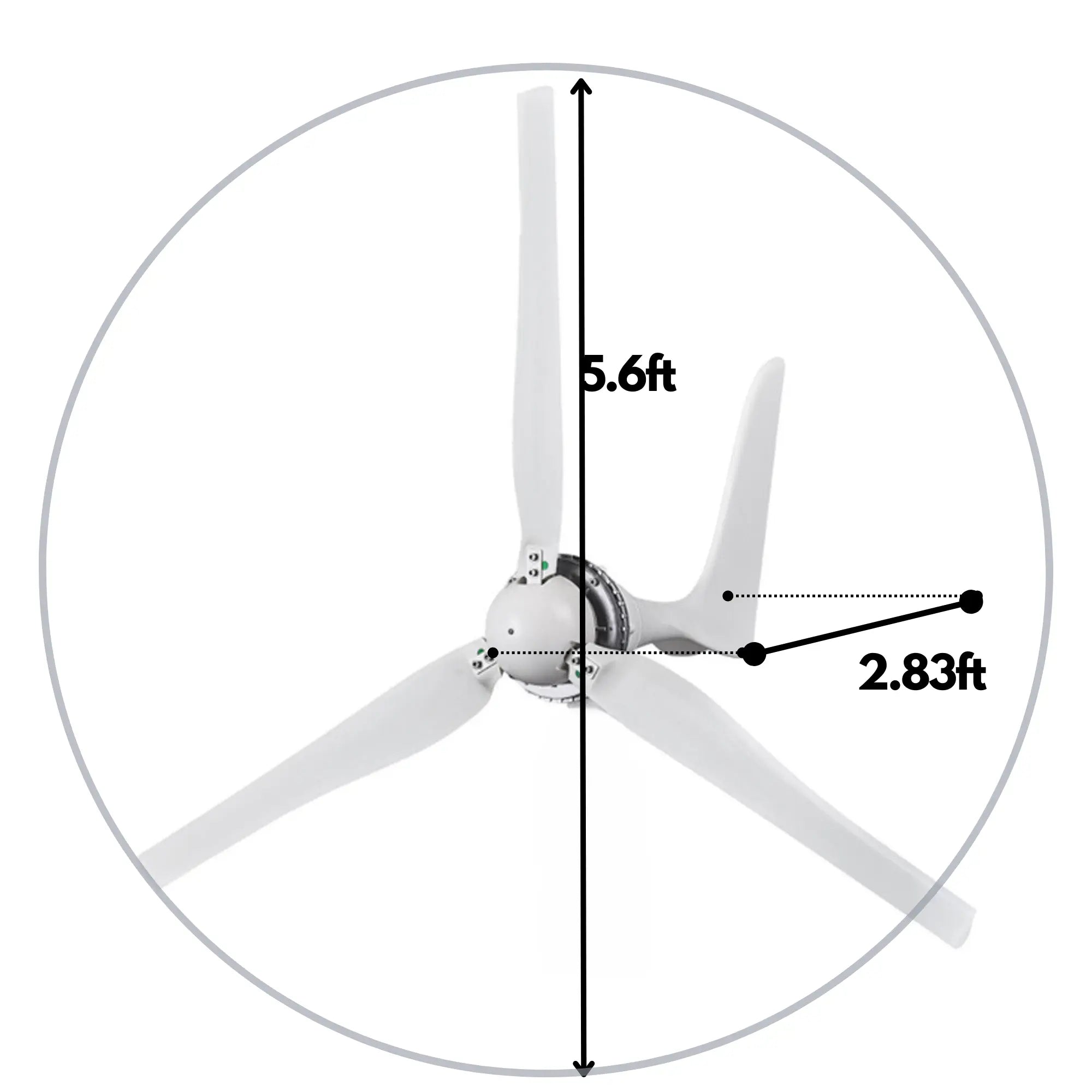

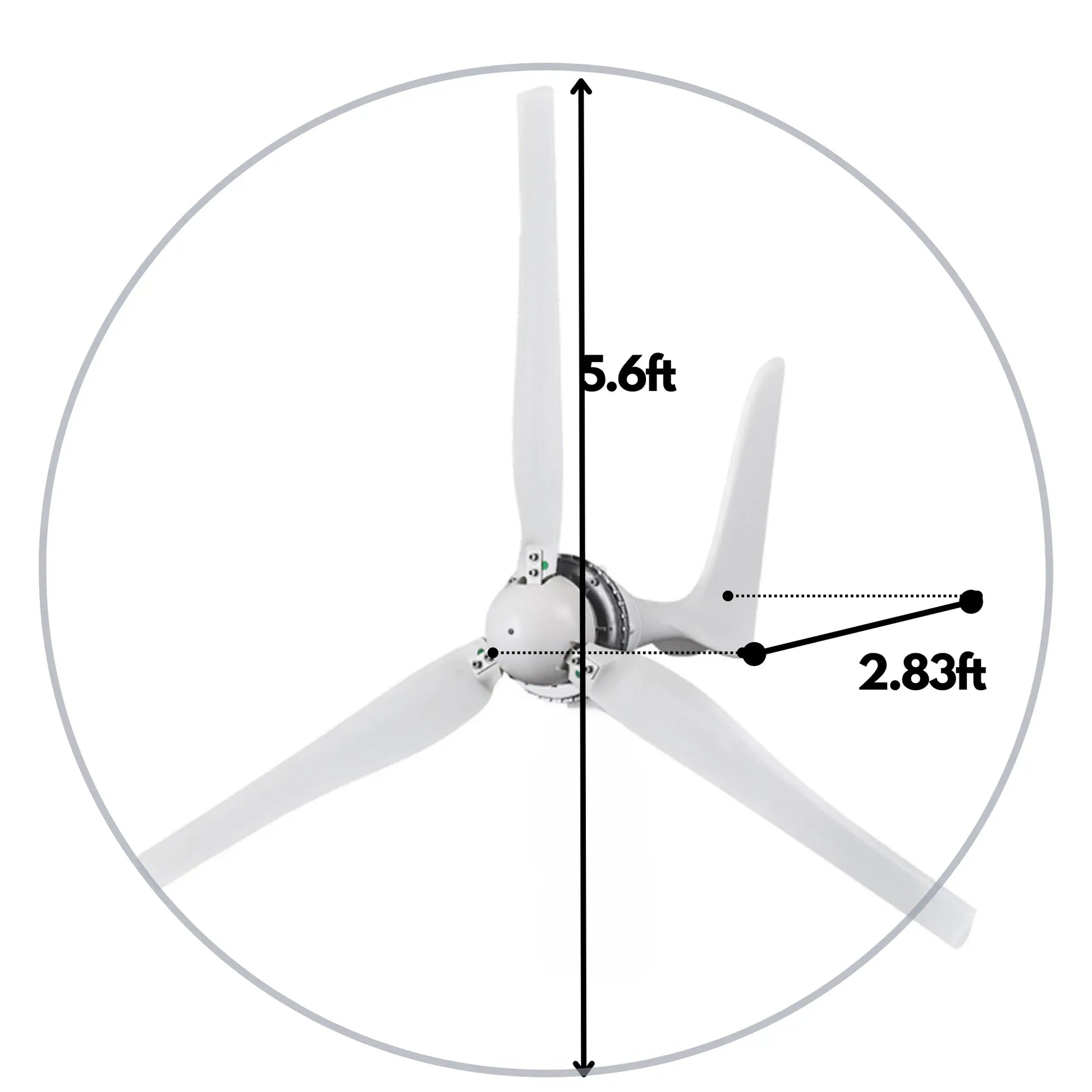

| Spinning Diameter |
5.58 ft / 1.7 m |
| Blade Material |
Fiberglass + Polypropylene |
| Generator Type |
Permanent Magnet Brushless |
| Battery Protection Voltage |
28.8 ± 2 V (24 V); 56 ± 6 V (48 V) |
| Charging Efficiency |
95 % |
| Over-Speed Braking |
≥ 1400 RPM |
| Hub Diameter |
1.9″ |
| Weight |
44 lb |

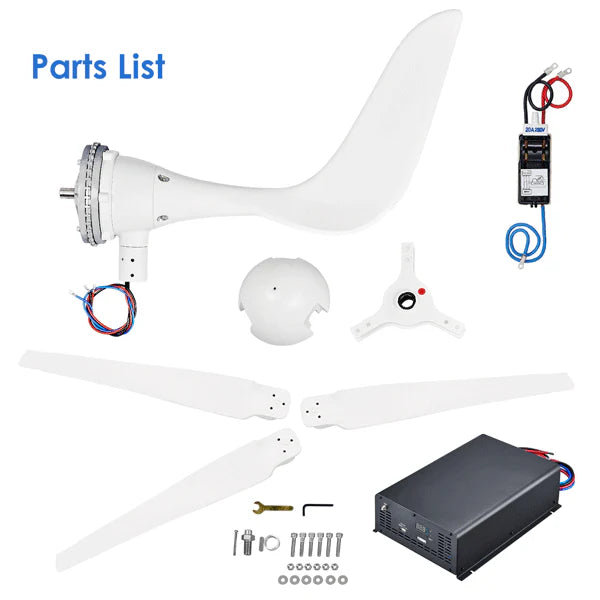

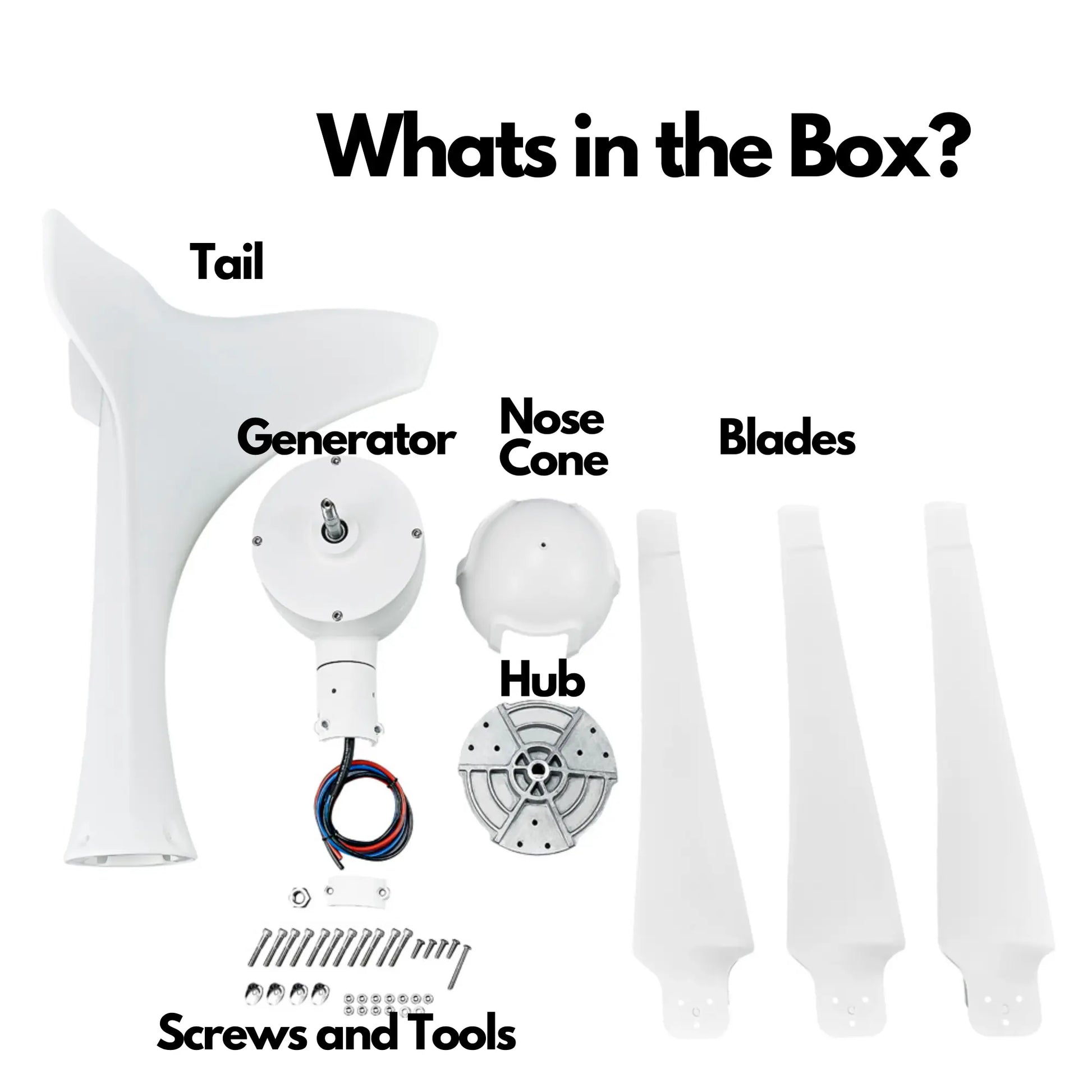

3. What’s Included in the Box
4. Product Description

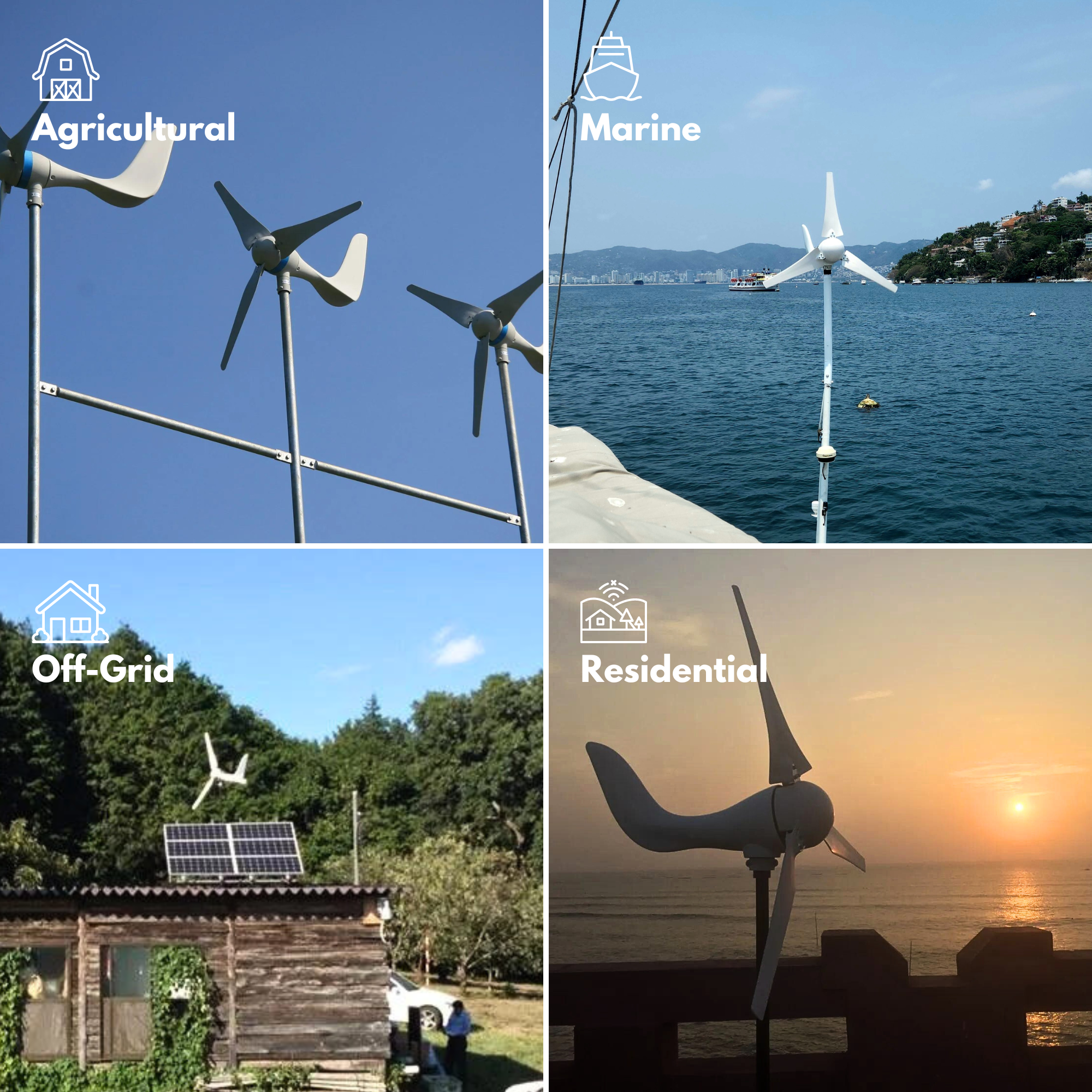

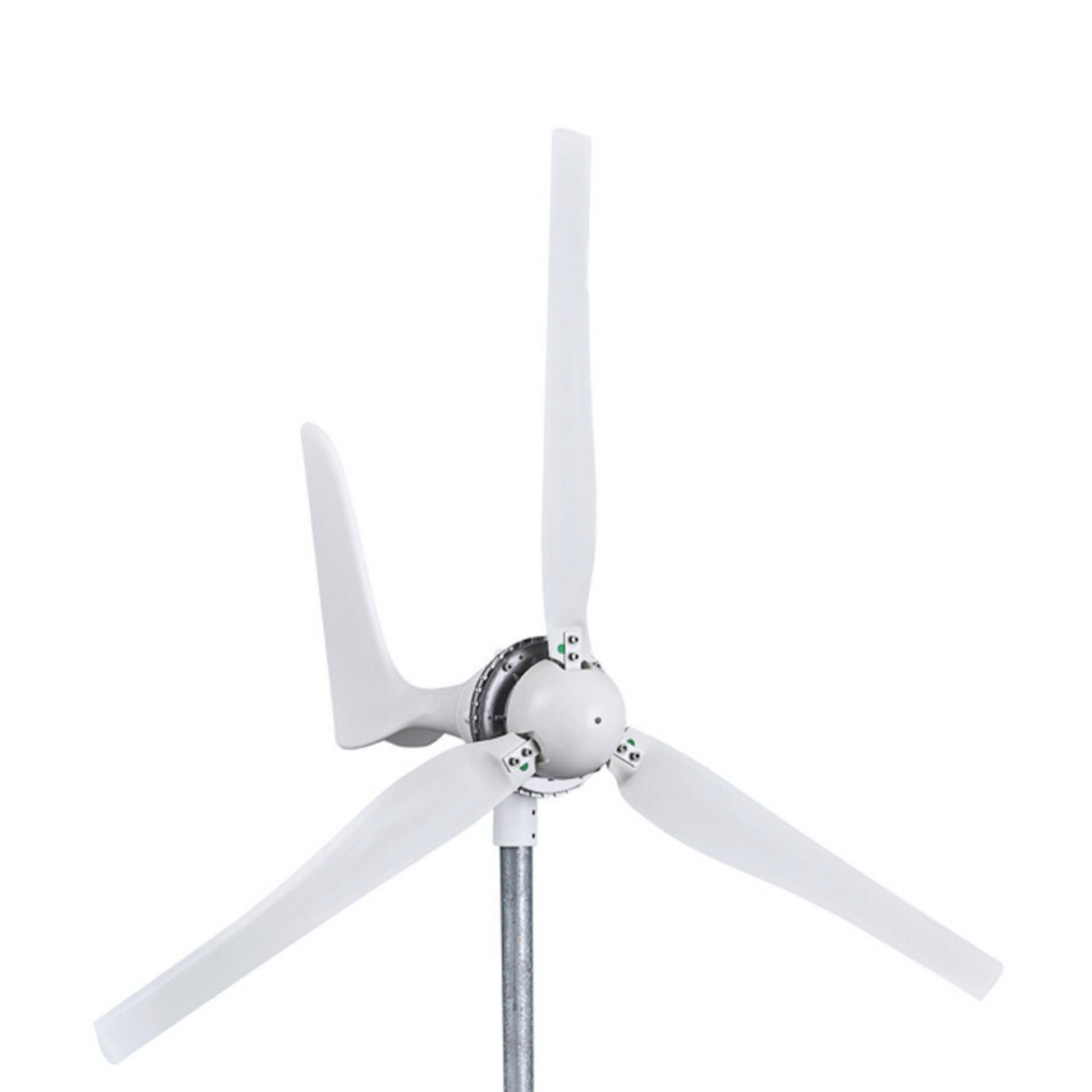

The Automaxx 1500W Wind Turbine Generator Kit is engineered for high-demand off-grid applications such as cabins, RVs, marine setups, and emergency backup systems. It starts generating power in light breezes and scales effectively up to strong winds, reaching full capacity at 31.3 mph. Its advanced MPPT controller delivers a 95 % charging efficiency to 24 V/48 V battery banks, while built-in safety features include automatic over-speed braking and a manual brake switch. Bluetooth-enabled versions also allow for real-time monitoring via a dedicated app. Rugged build quality ensures it can withstand harsh environments and high wind gusts up to 118 mph.
5. Product Images & Video

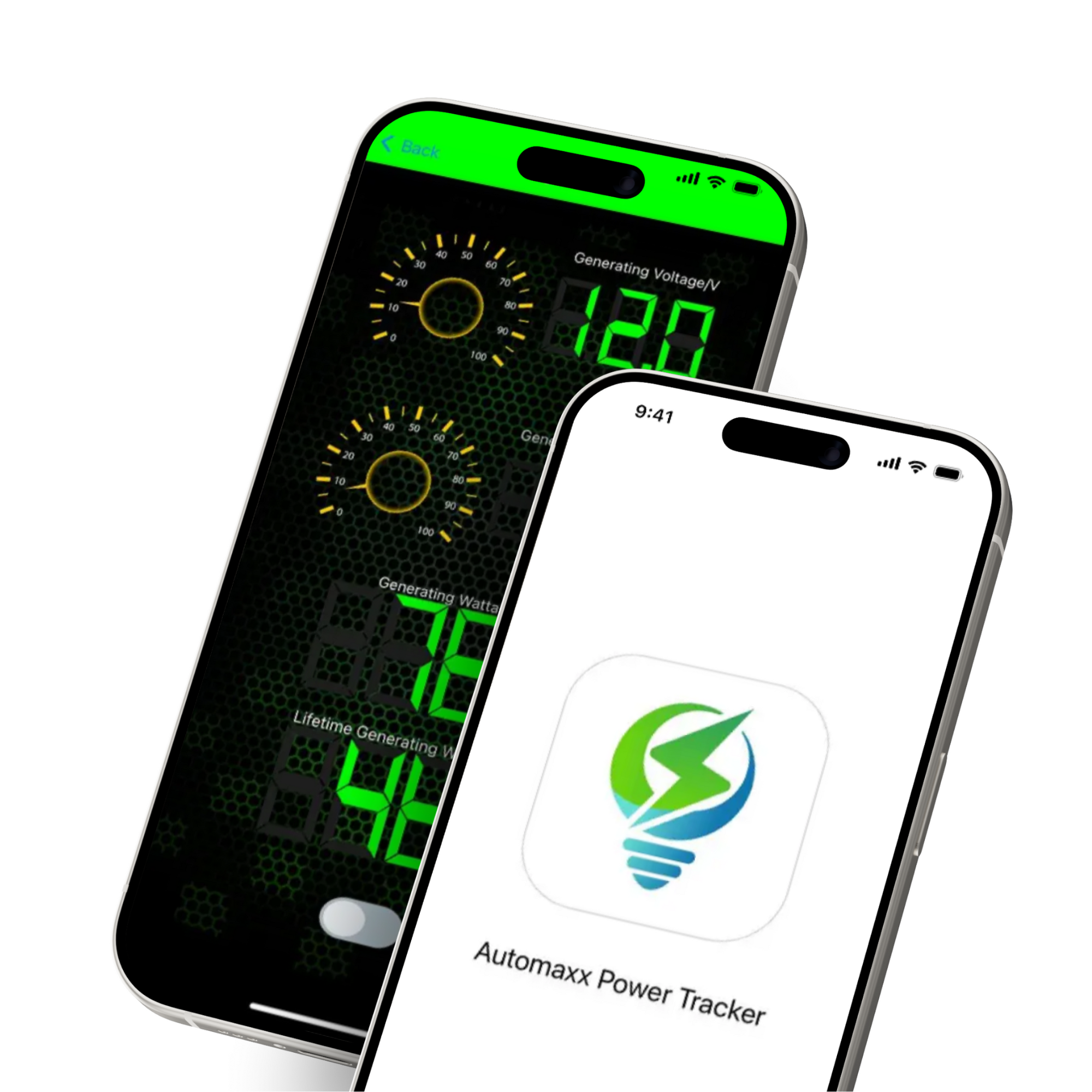

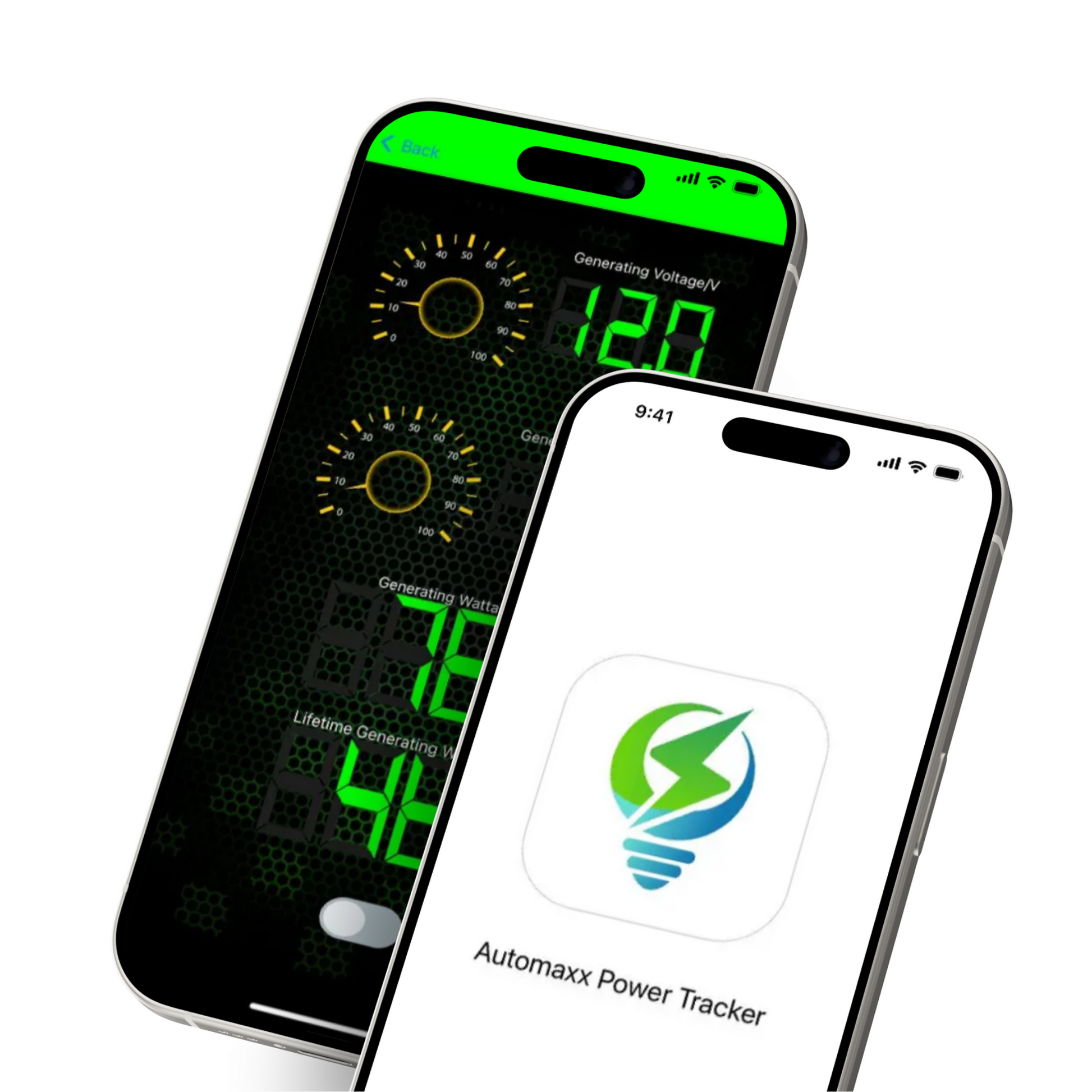

AUTOMAXX POWER TRACKER APP (Bluetooth Version Only)
6. Manufacturer Warranty Information
Warranty & Use Instructions
- 2-year manufacturer warranty from purchase date (730 days).
- Original receipt and packaging required for warranty or repairs.
- Product must be used according to the user manual.
7. Additional Information
-

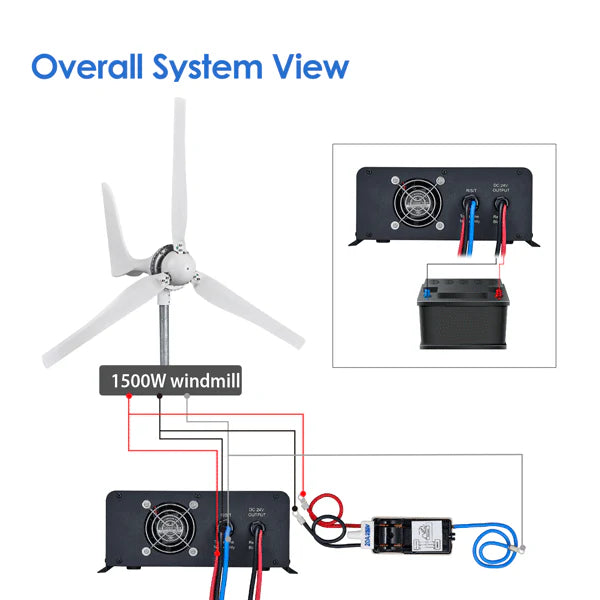

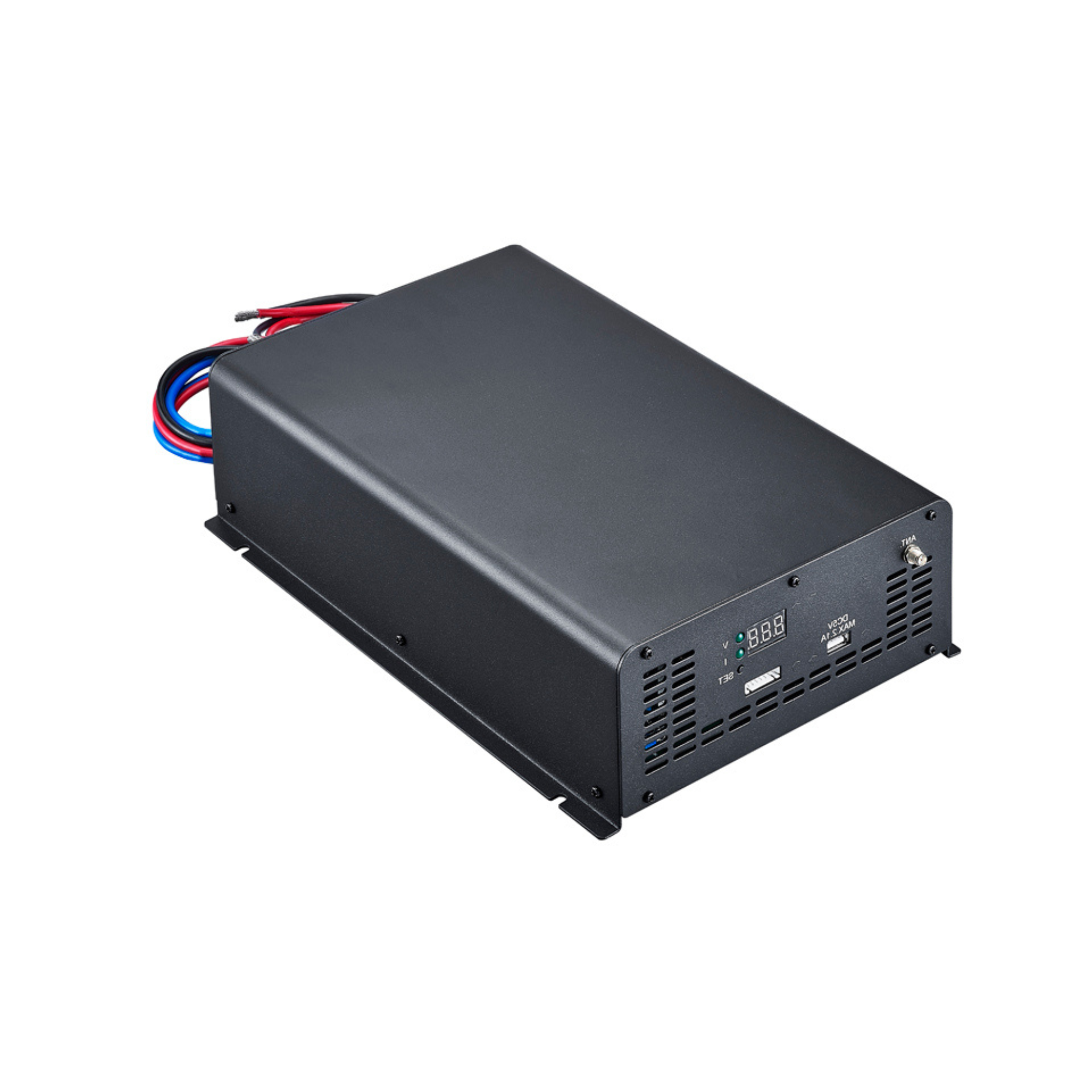

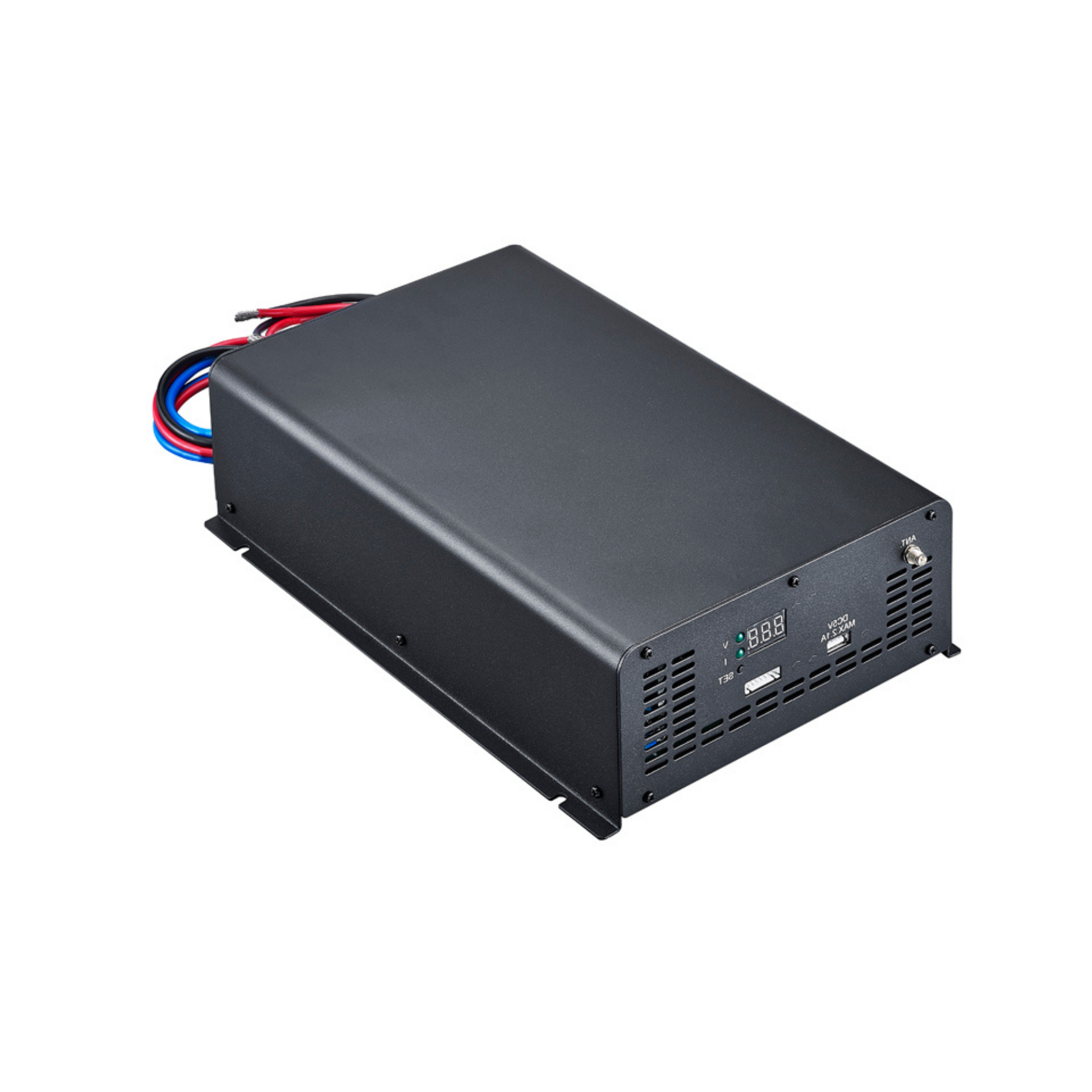

Built-in external MPPT charge controller ensures efficient and safe battery charging
-
Resilient build tested to survive hurricane-force winds (up to 118 mph)
-
Bluetooth app provides remote monitoring and performance tracking
-
Designed for quiet, low-maintenance operation—no frequent servicing needed
-
Order Processing & Estimated Shipping For This Product
- Processing time: 1–2 business days
- Small parcels: 5–7 business days
- Freight/LTL: 6–12 business days (contiguous U.S. only)
- Check for damage before signing the shipping bill
8. Use Documents
9. Frequently Asked Questions
Q: What battery voltage options are available?
A: Supports both 24 V and 48 V battery systems with specified Ah recommendations per model.
Q: What's the Bluetooth feature?
A: Available in the Bluetooth version; allows app-based monitoring of turbine performance.
Q: Can it handle hurricanes?
A: Yes, tested to operate through wind speeds up to 118 mph with automatic braking.
Q: What output type is provided?
A: Internal AC generation; MPPT controller converts output to DC for batteries.
Q: Is it suitable for hybrid solar systems?
A: Yes, works well when integrated into hybrid systems with solar panels and inverters.
