1. Features (About This Item)
-
300W rated continuous power output for small-scale solar and wind‑to‑grid systems
-
Selectable input voltage options: 24 V or 48 V DC
-
Selectable output voltage: 120 V or 230 V AC
-
Built‑in MPPT functionality with integrated battery passthrough, ideal for smart street lamp and self-sufficient lighting systems
-
Weather‑resistant housing, suitable for outdoor installations
-
Dual protection with automatic and mechanical braking systems for LED lighting control
2. Specifications (Technical Details)
| Specification |
Details |
| Model Number |
UP‑8P6C |
| Maximum Continuous Power |
300W |
| DC Input Voltage |
24 V (19–41 V) / 48 V (37–63 V) |
| AC Output Voltage |
120 V or 230 V |
| No‑Load Current |
≤ 0.1 A |
| Input Fuse |
20 A (24 V) / 10 A (24 V) |
| AC Output Fuse |
10 A, 250 V |
| Power Factor |
> 0.9 |
| Total Harmonic Distortion |
< 5 % |
| Dimensions |
27 × 18 × 8 cm |
| Weight |
3.7 lb |
| Protections |
Short‑circuit, overload, low/high voltage, over‑temperature |
3. What’s Included in the Box
-
1 × Automaxx 300W Grid‑Tie Inverter (choose voltage variant)
-
Pre‑installed fuses and internal MPPT circuitry
-
Mounting hardware and user manual
4. Product Description

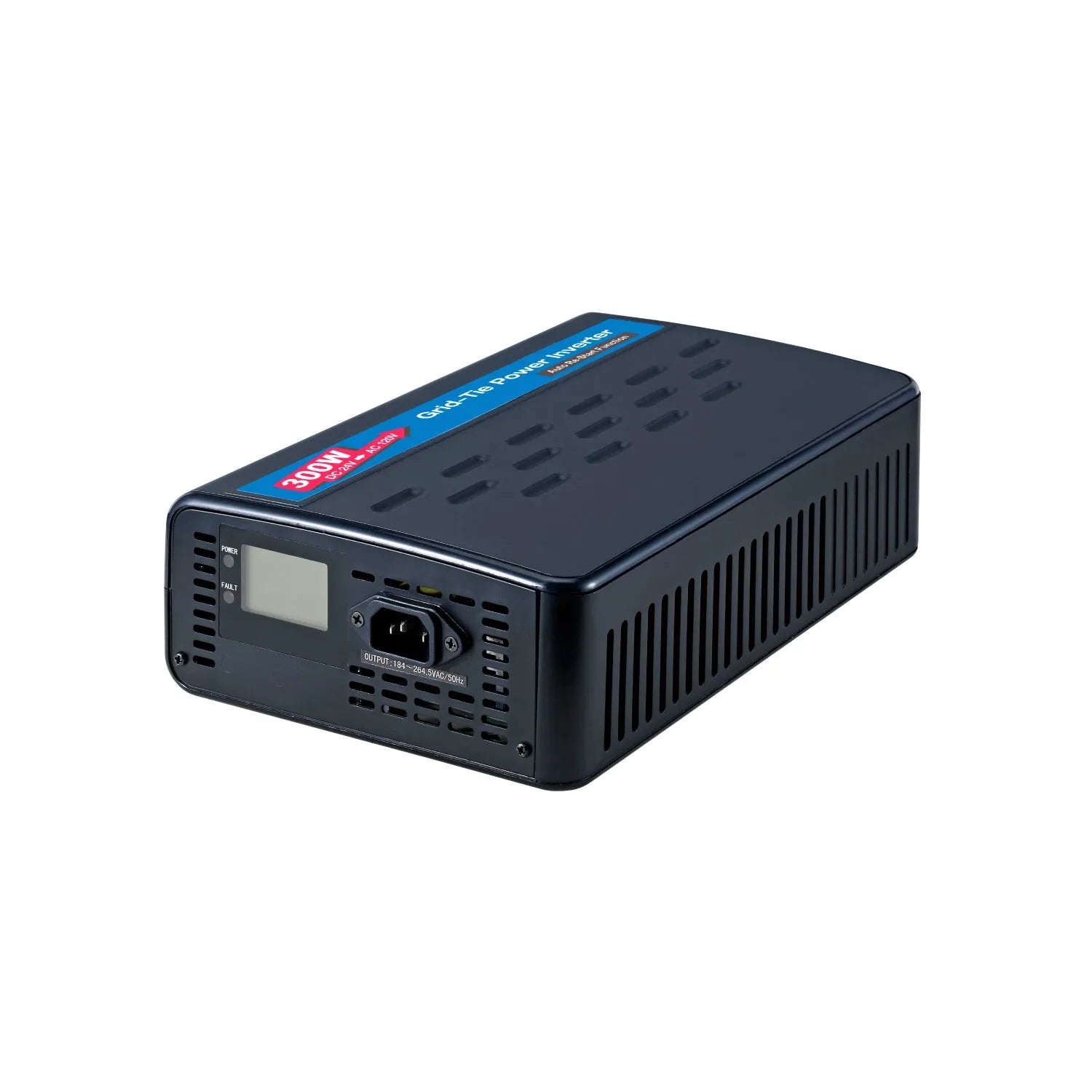

The Automaxx 300W Grid‑Tie Inverter is engineered to seamlessly convert renewable DC power (solar or wind) into AC power synchronized to the grid. Featuring selectable voltage configurations (24 V/48 V input and 120 V/230 V output), built-in MPPT charge optimization, and weatherproof housing, this compact inverter is ideal for micro grid‑tie setups, smart street lighting, and off‑grid renewable systems. Robust protections and efficient operation (≤ 0.1 A no-load draw, power factor > 0.9, THD < 5%) ensure safe and reliable performance.
5. Product Images & Video
6. Manufacturer Warranty Information
Warranty & Use Instructions
- 2-year manufacturer warranty from purchase date (730 days).
- Original receipt and packaging required for warranty or repairs.
- Product must be used according to the user manual.
7. Additional Information
-
MPPT + Battery Management: Enables battery backup while supplying grid-tied output
-
High cold-start efficiency and low standby draw for energy saving
-
Outdoor-ready build suited for lamp post controllers and micro inverters
-
Order Processing & Estimated Shipping For This Product
- Processing time: 1–2 business days
- Small parcels: 5–7 business days
- Freight/LTL: 6–12 business days (contiguous U.S. only)
- Check for damage before signing the shipping bill
8. Use Documents
9. Frequently Asked Questions
Q: What voltages are supported?
A: Input: 24 V or 48 V DC; Output: 120 V or 230 V AC.
Q: Can it charge batteries?
A: Yes—it includes MPPT and battery passthrough functions ideal for street light systems with energy storage.
Q: Is it protected against weather?
A: Yes—features a weather-resistant casing suitable for outdoor installations.
Q: Will it handle full sun input?
A: The MPPT interface ensures stable grid output while preventing damage during fluctuating input conditions.
