Autel Robotics EVO II Pro 6K Rugged Bundle V3 (102001513)

Autel EVO II Dual 640T V3 – Rugged Bundle

7.9″ Smart Controller V3 with SkyLink 2.0

Equipped with SkyLink 2.0 and a bright 7.9″, 2000‑nit display, this controller delivers QHD video feed from up to 15 km (9 mi) away using tri‑band (900 MHz, 2.4 GHz & 5.8 GHz) adaptive hopping. Built tough—with IP43 weather sealing and -20 °C to 40 °C operating range—it runs on Android with the Autel Explorer app and supports third‑party apps via its 8-core CPU.

360° Obstacle Avoidance

A full suite of 19 sensors—including 12 visual, ultrasonic, IMUs, and RGB camera—builds a 3D environmental model in real time, enabling collision avoidance in all directions.

Thermal + Visual Powerhouse

• Thermal camera: 640×512 resolution, 13 mm lens, 16× digital zoom, 30 fps, radiometric measurement, 10 palettes, PiP mode for combined live thermal/visual view.
• Visual camera: 0.8″ RYYB CMOS sensor with Moonlight Algorithm 2.0, 50 MP stills, 4K HDR video, fast PDAF+CDAF autofocus, 16× digital zoom (4× lossless).

Additional Features

• 38 min flight time (no wind); 33 min hover  .
• Max range: 15 km transmission; 22 km flight distance  .
• Peak speed: ~20 m/s (45 mph); wind resistance to Level 8  .
• Operating temps: –10 °C to 40 °C  .
• GNSS: GPS, GLONASS, Galileo, BeiDou ().
• Includes temperature alarms, isotherm overlays, IR image editing tools (IRPC)  .
• Optional Live Deck 2 support for real‑time broadcast monitoring  .

Aircraft

• Takeoff Weight: 1150 g
• Max Takeoff Weight: 1999 g
• Dimensions:

• Folded: 230 × 130 × 108 mm
• Unfolded: 457 × 558 × 108 mm
• Wheelbase: 397 mm
• Max Service Ceiling: 7000 m
• Max Ascent Speed: 8 m/s (Ludicrous mode)
• Max Descent Speed: 4 m/s (Ludicrous mode)
• Max Horizontal Flight Speed: 20 m/s (Ludicrous mode)
• Max Flight Distance (no wind): 22 km
• Max Flight Time (no wind): 38 min
• Max Hovering Time (no wind): 33 min
• Max Angular Velocity: 120°/s
• Max Tilt Angle: 33° (Ludicrous mode)
• Max Wind Resistance: Level 8
• Operating Temperature: –10℃ to 40℃
• GNSS: GPS, BeiDou, GLONASS, Galileo
• Hovering Accuracy:

• Vertical: ±0.1 m (visual), ±0.5 m (GPS)
• Horizontal: ±0.3 m (visual), ±1.5 m (GPS)
• Internal Storage: 8 GB
• SD Card Support: up to 256 GB (UHS-3 or Class 10)

Transmission & Frequencies

• Operating Frequencies:

• 902–928 MHz (FCC only)
• 2.400–2.4835 GHz
• 5.725–5.850 GHz (non-Japan)
• 5.650–5.755 GHz (Japan only)
• Transmission Power:

• 900 MHz: ≤31 dBm (FCC/ISED)
• 2.4 GHz: ≤32 dBm (FCC/ISED); ≤20 dBm (SRRC/CE/MIC/RCM)
• 5.8 GHz: ≤33 dBm (FCC/ISED/SRRC/MIC); ≤14 dBm (CE/RCM)

Gimbal

• Stabilization: 3-axis (tilt, roll, pan)
• Mechanical Range:

• Tilt: –135° to +45°
• Pan: –100° to +100°
• Controllable Range:
• Tilt: –90° to +30°
• Pan: –90° to +90°
• Max Tilt Speed: 300°/s
• Angular Vibration Range: ±0.005°

Remote Controller

• Max Transmission Distance (unobstructed):

• FCC: 15 km
• CE: 8 km
• Display: 2048 × 1536 @ 60fps
• Battery Capacity: 5800 mAh
• Battery Life:

• ~3 hours (max brightness)
• ~4.5 hours (50% brightness)
• Charging Time: ~120 minutes
• Internal Storage: 128 GB ROM

Sensing System

• Type: Omnidirectional
• Measurement Range & FOV:

• Forward: 0.5–18 m, 60° H × 80° V
• Backward: 0.5–16 m, 60° H × 80° V
• Upward: 0.5–10 m, 65° H × 50° V
• Downward: 0.5–10 m, 100° H × 80° V
• Left/Right: 0.5–10 m, 65° H × 50° V
• Effective Sensing Speeds:

• Forward/Backward: <12 m/s
• Up/Down/Side: <5 m/s
• Operating Conditions:

• Forward/Backward/Side: Patterned surface, lux >15
• Upward: Diffuse reflective surfaces (>20%)
• Downward: Patterned surface or diffuse reflective, lux >15

Thermal Camera

• Sensor: Uncooled VOx Microbolometer
• FOV: H 33°, V 26°
• Focal Length: 13 mm
• Pixel Size: 12 μm
• Wavelength Range: 8–14 μm
• Temperature Range:

• High Gain: –20°C to +150°C
• Low Gain: 0°C to +550°C
• Accuracy: ±3°C or ±3% of reading
• Effective Measurement Distance: 2–20 m
• Zoom: 1–16×
• Infrared Video: 640 × 512 @ 30 fps
• Video Format: MOV / MP4 (H.264/H.265)
• Image Format: JPG (.irg metadata file)
• Image Resolution:

• Infrared: 640 × 512
• Picture-in-Picture: 1920 × 1080 / 1280 × 720
• Photo Modes: Single / Burst (3/5) / Time Lapse

Visible Light Camera

• Sensor: 1/1.28” CMOS, 50 MP
• FOV: 85°
• Equivalent Focal Length: 23 mm
• Aperture: f/1.9
• Focus Range: 0.5 m to ∞ (AF)
• ISO Range:

• Photo: 100–6400
• Video: 100–64000
• Shutter Speed:

• Photo: 1/8000 – 8 s
• Video: 1/8000 – 1/frame rate
• Zoom: 1–16× (up to 4× lossless)
• Photo Modes: Single / Burst / AEB / Time Lapse / HDR
• Max Photo Resolutions:

• 8192 × 6144 (4:3)
• 4096 × 3072 (4:3)
• 3840 × 2160 (16:9)
• Image Formats: JPG / DNG / JPG+DNG
• Video Formats: MOV / MP4
• Video Resolutions:

• 4K: 3840 × 2160 @ 24–60 fps
• 2.7K: 2720 × 1528 @ 24–60 fps
• 1080p: 1920 × 1080 @ 24–60 fps
• Max Bitrate: 120 Mbps
• File System: FAT32 / exFAT

Battery

• Capacity: 7100 mAh
• Voltage: 11.55 V
• Type: LiPo 3S
• Energy: 82 Wh
• Weight: 365 g
• Max Charging Power: 93 W
• Charging Time: ~90 minutes
• Charging Temperature: 5°C to 45°C
• Storage Conditions:

• Temperature: –10°C to 30°C
• Humidity: 65±20% RH
• Recommended Temp: 22°C to 28°C

Charger

• Input: 100–240 V, 50/60 Hz, 1.5 A
• Output:

• 13.2 V ⎓ 5 A
• USB: 5V⎓3A, 9V⎓2A, 12V⎓1.5A
• Voltage: 13.2 ± 0.1 V
• Rated Power: 66 W

Multi-Charger

• Output Voltage: 13.2 V
• Charging Temp Range: 5°C to 45°C

Rugged Bundle Advantage

The bundle is designed for tough missions—inspection, search & rescue, cinematography, infrastructure monitoring—with all the gear in one rugged package.

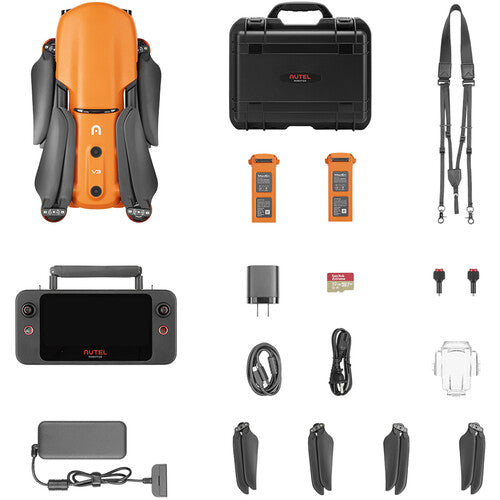

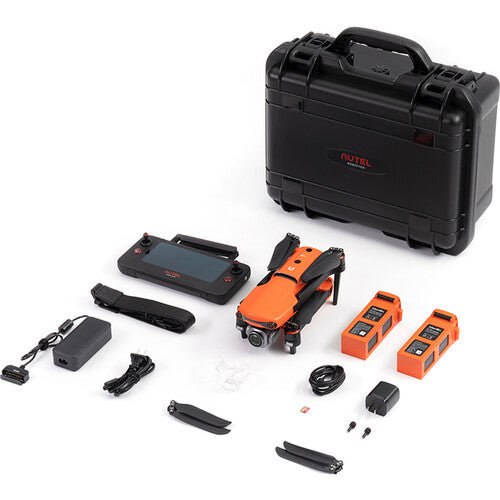

Includes:

• EVO II Dual 640T V3 drone
• Rugged waterproof hard case
• 3 intelligent flight batteries
• Remote Controller V3
• Multi‑charger hub & power cables
• Spare propellers (3 pairs)
• 32 GB microSD card, controller sticks, neck strap
• Charger, power adapter, user manual

Why You’ll Love It:

• Thermal + Visual fusion for comprehensive mission data
• Long-range transmission & flight support strategic operations
• Moonlight Algorithm 2.0 enhances low-light visual clarity
• Radiometric thermal analytics with alarms & temp measurements
• 360° avoidance + Smart Tracking 2.1 for safe autonomous flights
• Durable, all-weather design with fast deployment and accurate landing systems
• Field-ready controller with high-brightness screen and app flexibility
